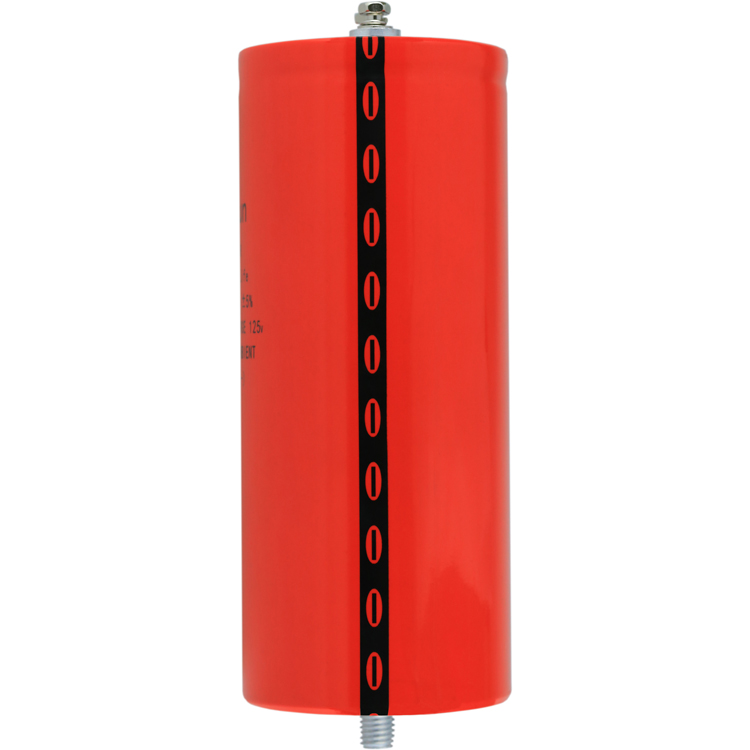

●保證105℃ 12000小時；
●適(shi)用(yong)于電(dian)(dian)梯，港口機械及(ji)各種升降設備(bei)，軌道(dao)交(jiao)通，新能(neng)源(yuan)汽(qi)車(che)，太(tai)陽能(neng)，風能(neng)，核(he)能(neng)，地熱變頻器(qi)，伺(si)服系(xi)統，UPS，開關電(dian)(dian)源(yuan)，通信(xin)電(dian)(dian)源(yuan)，電(dian)(dian)子提花機電(dian)(dian)源(yuan)，特種電(dian)(dian)源(yuan)
◆規格表
|
項目 |
特性 |
||||||
|
工(gong)作溫度(du)范(fan)圍 |
-40～+105℃（16-450VDC） |
||||||
|
額定電壓(ya)范圍 |
16～500VDC |
||||||
|
靜電容量容許差 |
± 20%（M）20℃/120HZ |
||||||
|
漏(lou)電流 |
I=0.01CV或者5mA中任意一個較小值 |
||||||
|
損失角正切(qie)值 |
額(e)定電壓（Vdc） |
16-50V |
63V-80V |
100v～250V |
315v～400V |
420V～450V |
|
|
tanδMax |
0.35 |
0.25 |
0.15 |
0.15 |
0.20 |
||
|
反向電壓/等效串聯(lian)電感(gan) |
2 V / 20 nH |
||||||
|
溫(wen)度(du)特性(xing) |
靜電容量變化率 C（-25℃）/C（+20℃）≥0.7 20℃/120HZ |
||||||
|
絕緣電阻 |
全部端(duan)子和容器(qi)套上的(de)絕緣套且安裝(zhuang)的(de)固定帶之間用DC500V的(de)絕緣電阻測(ce)定儀(yi)測(ce)出(chu)的(de)值≥101MΩ |
||||||
|
絕緣(yuan)耐壓 |
全(quan)部端子和容器套的絕緣套且安裝的固定帶之(zhi)間施(shi)加AC2000V的電壓1分鐘未出現異常。 |
||||||
|
耐(nai)久性 |
在(zai)105℃環境下(xia)，不超過額(e)定(ding)電(dian)壓的(de)范圍下(xia)疊加(jia)額(e)定(ding)紋(wen)波(bo)電(dian)流，連(lian)續加(jia)載額(e)定(ding)電(dian)壓12000小時后， 待溫度(du)恢復到20℃進行測量時，應滿足以(yi)下要求。 |
||||||
|
靜(jing)電容量變化(hua)率(lv) |
≤初始值(zhi)的±20% |
||||||
| 損失角正切值 |
≤初(chu)始規格值的200% |
||||||
|
漏(lou)電流 |
≤初(chu)始規格(ge)值(zhi) |
||||||
|
高溫無負荷特性 |
在105℃環境(jing)下，無負荷放(fang)置500小時后(hou)待溫度恢復到20℃，進行試(shi)驗前處理（JIS C 5101-4 4.1項） 后進(jin)行測量(liang)時，應滿足以下要(yao)求 |
||||||
|
靜(jing)電容量變化率 |
≤初始值(zhi)的(de)±20% |
||||||
|
損失角正(zheng)切值 |
≤初始規格(ge)值的(de)200% |
||||||
|
漏電流 |
≤初始規格(ge)值 |
||||||
|
WV |
cap |

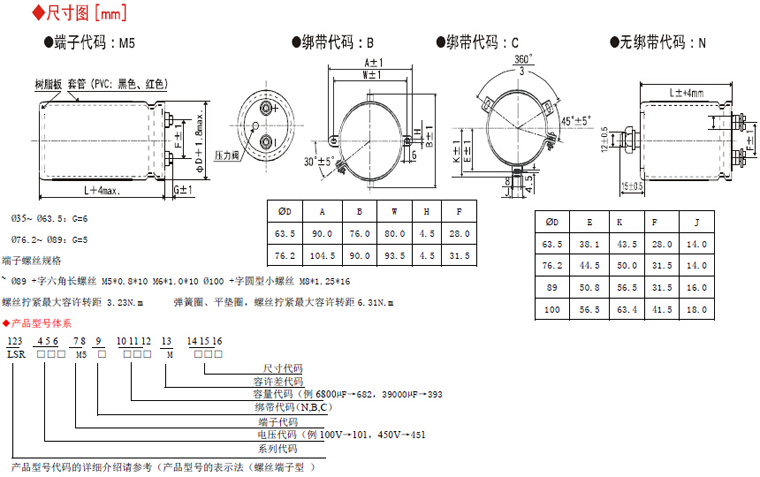

Case size ØD x L |
ESR 120Hz,20℃ |
Ripple current |
Par t NO. |
|
[Vdc] |
[μF] |
[mm] |
[mΩ] |
（Ams/105℃,120Hz） |
|
| 16v |
82000 |
35*55 |
6 |
9 |
LSR160M5B823KA55 |
|
120000 |
35*70 |
4 |
12 |
LSR160M5B124KA70 |
|
|
120000 |
42*50 |
4 |
11.1 |
LSR160M5B124KV50 |
|
|
150000 |
35*80 |
4 |
14.2 |
LSR160M5B154KA80 |
|
|
150000 |
42*60 |
3 |
13.7 |
LSR160M5B154KV60 |
|
|
180000 |
35*100 |
3 |
17 |
LSR160M5B184KAA0 |
|
|
180000 |
42*70 |
3 |
15.8 |
LSR160M5B184KV70 |
|
|
180000 |
42*80 |
3 |
15 |
LSR160M5B184KV80 |
|
|
220000 |
42*90 |
2 |
19.1 |
LSR160M5B224KV90 |
|
|
220000 |
50*70 |
2 |
17.7 |
LSR160M5B224KC70 |
|
|
270000 |
42*105 |
2 |
21.1 |
LSR160M5B274KVA5 |
|
|
270000 |
50*80 |
2 |
20.6 |
LSR160M5B274KC80 |
|
|
390000 |
50*100 |
1 |
27 |
LSR160M5B394KCA0 |
|
|
470000 |
65*80 |
1 |
35.6 |
LSR160M6C474KD80 |
|
|
560000 |
65*100 |
1 |
42.1 |
LSR160M6C564KDA0 |
|
|
820000 |
65*130 |
1 |
56.5 |
LSR160M6C824KDD0 |
|
|
820000 |
76*100 |
1 |
44.1 |
LSR160M6C824KEA0 |
|
|
1000000 |
76*115 |
1 |
46.5 |
LSR160M6CA5KEB5 |
|
|
1200000 |
76*145 |
1 |
50.8 |
LSR160M6CC5KEE5 |
|
|
1500000 |
76*170 |
1 |
53.5 |
LSR160M6C155KE70 |
|
|
1800000 |
89*145 |
1 |
57.3 |
LSR160M6C185KFE5 |
|
|
2200000 |
76*225 |
1 |
61 |
LSR160M6C225KEN0 |
|
|
2200000 |
89*170 |
1 |
60.4 |
LSR160M6C225KFH0 |
|
|
2700000 |
89*220 |
1 |
67.1 |
LSR160M6C275KFN0 |
|
|
3300000 |
89*230 |
1 |
68.3 |
LSR160M6C335KFM0 |
|
| 25v |
33000 |
35*55 |
14 |
5.9 |
LSR250M5B333KA55 |
|
47000 |
35*70 |
9 |
7.8 |
LSR250M5B473KA70 |
|
|
47000 |
42*50 |
9 |
7.2 |
LSR250M5B473KV50 |
|
|
56000 |
35*80 |
8 |
9 |
LSR250M5B563KA80 |
|
|
68000 |
42*60 |
7 |
9.5 |
LSR250M5B683KV60 |
|
|
68000 |
35*100 |
5 |
11.9 |
LSR250M5B683KAA0 |
|
|
68000 |
42*70 |
7 |
10 |
LSR250M5B683KV70 |
|
|
82000 |
42*80 |
5 |
10.5 |
LSR250M5B823KV80 |
|
|
82000 |
42*90 |
7 |
11 |
LSR250M5B823KV90 |
|
|
100000 |
50*70 |
4 |
12.3 |
LSR250M5B104KC70 |
|
|
120000 |
42*105 |
4 |
14.6 |
LSR250M5B124KVA5 |
|
|
120000 |
50*80 |
4 |
14.2 |
LSR250M5B124KC80 |
|
|
150000 |
50*100 |
3 |
17.3 |
LSR250M5B154KCA0 |
|
|
180000 |
65*80 |
3 |
22.4 |
LSR250M6C184KD80 |
|
|
270000 |
65*100 |
2 |
29.8 |
LSR250M6C274KDA0 |
|
|
330000 |
76*100 |
1 |
28.5 |
LSR250M6C334KEA0 |
|
| 50v |
27000 |
50*70 |
8 |
8 |
LSR500M5B273KC70 |
|
33000 |
42*100 |
7 |
7 |
LSR500M5B333KVA0 |
|
|
39000 |
50*90 |
7 |
10 |
LSR500M5B393KC90 |
|
|
47000 |
65*70 |
4 |
13.1 |
LSR500M6C473KD70 |
|
|
68000 |
65*85 |
4 |
16.5 |
LSR500M6C683KD85 |
|
|
82000 |
76*90 |
3 |
17.1 |
LSR500M6C823KE90 |
|
|
100000 |
65*120 |
3 |
22.1 |
LSR500M6C104KDC0 |
|
|
120000 |
76*115 |
2 |
20.3 |
LSR500M6C124KEB5 |
|
|
150000 |
76*130 |
2 |
24.6 |
LSR500M6C154KED0 |
|
|
180000 |
76*150 |
2 |
28.6 |
LSR500M6C184KEF5 |
|
|
220000 |
89*140 |
1 |
35.1 |
LSR500M6C224KFE0 |
|
|
270000 |
76*220 |
1 |
38.8 |
LSR500M6C274KEN0 |
|
|
330000 |
89*200 |
1 |
48.6 |
LSR500M6C334KFO0 |
|
|
390000 |
89*210 |
1 |
51.6 |
LSR500M6C394KFP0 |
|
|
470000 |
89*230 |
1 |
56.5 |
LSR500M6C474KFM0 |
|
| 63v |
8200 |
35*55 |
35 |
3.7 |
LSR630M5B822KA55 |
|
12000 |
42*50 |
24 |
4.6 |
LSR630M5B123KV50 |
|
|
15000 |
35*70 |
19 |
5.5 |
LSR630M5B153KA70 |
|
|
18000 |
35*80 |
16 |
6.3 |
LSR630M5B183KA80 |
|
|
18000 |
42*60 |
16 |
6.1 |
LSR630M5B183KV60 |
|
|
18000 |
35*100 |
16 |
6.9 |
LSR630M5B183KAA0 |
|
|
22000 |
42*70 |
13 |
7.1 |
LSR630M5B223KV70 |
|
|
22000 |
42*80 |
13 |
6.8 |
LSR630M5B223KV80 |
|
|
27000 |
50*70 |
11 |
8 |
LSR630M5B273KC70 |
|
|
27000 |
42*105 |
11 |
8.6 |
LSR630M5B273KVA5 |
|
|
33000 |
50*80 |
9 |
9.3 |
LSR630M5B333KC80 |
|
|
33000 |
42*105 |
9 |
9.5 |
LSR630M5B333KVA5 |
|
|
39000 |
50*100 |
7 |
11 |
LSR630M5B393KCA0 |
|
|
47000 |
65*80 |
6 |
14.5 |
LSR630M6C473KD80 |
|
|
68000 |
65*100 |
4 |
19 |
LSR630M6C683KDA0 |
|
|
82000 |
76*100 |
3 |
18 |
LSR630M6C823KEA0 |
|
|
100000 |
65*130 |
3 |
25.5 |
LSR630M6C104KDD0 |
|
|
120000 |
76*115 |
2 |
22.9 |
LSR630M6C124KEB5 |
|
|
150000 |
76*145 |
2 |
28.1 |
LSR630M6C154KEE5 |
|
|
180000 |
76*170 |
2 |
32.4 |
LSR630M6C184KE70 |
|
|
220000 |
89*145 |
1 |
38.3 |
LSR630M6C224KFE5 |
|
|
220000 |
76*225 |
1 |
40.8 |
LSR630M6C224KEN0 |
|
|
270000 |
89*170 |
1 |
44.8 |
LSR630M6C274KFH0 |
|
|
330000 |
89*220 |
1 |
54.9 |
LSR630M6C334KFN0 |
|
|
390000 |
89*230 |
1 |
60.9 |
LSR630M6C394KFM0 |
|
| 80v |
6800 |
35*55 |
47 |
3.2 |
LSR800M5B682KA55 |
|
8200 |
42*50 |
39 |
3.8 |
LSR800M5B822KV50 |
|
|
10000 |
35*70 |
32 |
4.2 |
LSR800M5B103KA70 |
|
|
12000 |
35*80 |
27 |
4.6 |
LSR800M5B123KA80 |
|
|
12000 |
42*60 |
27 |
4.7 |
LSR800M5B123KV60 |
|
|
15000 |
35*100 |
21 |
6 |
LSR800M5B153KAA0 |
|
|
15000 |
42*70 |
21 |
5.6 |
LSR800M5B153KV70 |
|
|
15000 |
42*80 |
21 |
5.3 |
LSR800M5B153KV80 |
|
| 160v |
3900 |
42*80 |
29 |
4.6 |
LSR161M5B392KV80 |
|
4700 |
42*100 |
24 |
5.4 |
LSR161M5B472KVA0 |
|
|
4700 |
50*70 |
24 |
5.7 |
LSR161M5B472KC70 |
|
|
5600 |
50*80 |
20 |
6.1 |
LSR161M5B562KC80 |
|
|
6800 |
42*105 |
16 |
6.9 |
LSR161M5B682KVA5 |
|
|
8200 |
50*100 |
14 |
8.1 |
LSR161M5B822KCA0 |
|
|
8200 |
65*80 |
14 |
9.7 |
LSR161M6C822KD80 |
|
|
12000 |
65*100 |
9 |
12.8 |
LSR161M6C123KDA0 |
|
|
18000 |
65*130 |
6 |
13.7 |
LSR161M6C183KDD0 |
|
|
18000 |
76*100 |
6 |
17.1 |
LSR161M6C183KEA0 |
|
|
18000 |
76*115 |
6 |
14.3 |
LSR161M6C183KEB5 |
|
|
27000 |
76*145 |
4 |
19.1 |
LSR161M6C273KEE5 |
|
|
27000 |
76*170 |
4 |
20.1 |
LSR161M6C273KE70 |
|
|
39000 |
89*145 |
3 |
25.9 |
LSR161M6C393KFE5 |
|
|
47000 |
76*225 |
2 |
30.2 |
LSR161M6C473KEN0 |
|
|
47000 |
89*170 |
2 |
30 |
LSR161M6C473KFH0 |
|
|
56000 |
89*220 |
2 |
36.3 |
LSR161M6C563KFN0 |
|
|
68000 |
89*230 |
2 |
40.7 |
LSR161M6C683KFM0 |
|
| 200v |
1500 |
35*50 |
63 |
2.8 |
LSR201M5B152KA50 |
|
1800 |
35*70 |
52 |
2.6 |
LSR201M5B182KA70 |
|
|
2200 |
42*70 |
41 |
3.1 |
LSR201M5B222KV70 |
|
|
2700 |
42*70 |
33 |
4.1 |
LSR201M5B272KV70 |
|
|
3300 |
42*100 |
27 |
4.5 |
LSR201M5B332KVA0 |
|
|
3900 |
50*60 |
28 |
5 |
LSR201M5B392KC60 |
|
|
4700 |
50*80 |
14 |
5.2 |
LSR201M5B472KC80 |
|
|
5600 |
50*90 |
16 |
7 |
LSR201M5B562KC90 |
|
|
6800 |
65*70 |
16 |
8.2 |
LSR201M6C682KD70 |
|
|
8200 |
65*90 |
11 |
10.3 |
LSR201M6C822KD90 |
|
|
10000 |
65*105 |
10 |
11.1 |
LSR201M6C103KDA5 |
|
|
12000 |
65*120 |
7 |
11.6 |
LSR201M6C123KDC0 |
|
|
15000 |
76*105 |
5 |
12.6 |
LSR201M6C153KEA5 |
|
|
18000 |
76*130 |
4 |
14.2 |
LSR201M6C183KED0 |
|
|
22000 |
76*145 |
4 |
19.3 |
LSR201M6C223KEE5 |
|
|
27000 |
76*190 |
3 |
21.6 |
LSR201M6C273KEK0 |
|
|
39000 |
89*200 |
2 |
26.3 |
LSR201M6C393KFO0 |
|
|
47000 |
89*230 |
1 |
28.8 |
LSR201M6C473KFM0 |
|
| 250v |
1200 |
35*55 |
80 |
2.4 |
LSR251M5B122KA55 |
|
1500 |
35*70 |
64 |
3 |
LSR251M5B152KA70 |
|
|
1500 |
42*55 |
64 |
2.8 |
LSR251M5B152KV55 |
|
|
1800 |
35*80 |
53 |
3.5 |
LSR251M5B182KA80 |
|
|
1800 |
42*70 |
53 |
3.3 |
LSR251M5B182KV70 |
|
|
2200 |
42*80 |
43 |
4.1 |
LSR251M5B222KV80 |
|
|
2700 |
35*100 |
35 |
4.4 |
LSR251M5B272KAA0 |
|
|
2700 |
42*80 |
35 |
4.1 |
LSR251M5B272KV80 |
|
|
3300 |
42*90 |
29 |
4.9 |
LSR251M5B332KV90 |
|
|
3300 |
50*70 |
29 |
5.2 |
LSR251M5B332KC70 |
|
|
3900 |
50*80 |
24 |
5.5 |
LSR251M5B392KC80 |
|
|
3900 |
42*105 |
24 |
5.7 |
LSR251M5B392KVA5 |
|
| 400v |
3300 |
65*80 |
39 |
5.8 |
LSR401M6C332KD80 |
|
3900 |
65*100 |
33 |
6.8 |
LSR401M6C392KDA0 |
|
|
4700 |
65*120 |
30 |
6.8 |
LSR401M6C472KDC0 |
|
|
5600 |
76*100 |
23 |
8.9 |
LSR401M6C562KEA0 |
|
|
6800 |
76*115 |
19 |
8.2 |
LSR401M6C682KEB5 |
|
|
8200 |
76*145 |
16 |
9.8 |
LSR401M6C822KEE5 |
|
|
10000 |
76*170 |
13 |
11.4 |
LSR401M6C103KE70 |
|
|
12000 |
89*145 |
11 |
13.4 |
LSR401M6C123KFE5 |
|
|
15000 |
76*225 |
8 |
16 |
LSR401M6C153KEN0 |
|
|
15000 |
89*170 |
8 |
15.8 |
LSR401M6C153KFH0 |
|
|
18000 |
89*220 |
7 |
19.2 |
LSR401M6C183KFN0 |
|
|
22000 |
89*230 |
7 |
22.1 |
LSR401M6C223KFM0 |
|
| 450v |
470 |
35*55 |
237 |
1.4 |
LSR451M5B470KA55 |
|
560 |
35*70 |
199 |
1.7 |
LSR451M5B560KA70 |
|
|
560 |
42*55 |
199 |
1.7 |
LSR451M5B560KV55 |
|
|
680 |
35*80 |
164 |
1.7 |
LSR451M5B680KA80 |
|
|
820 |
42*70 |
136 |
2 |
LSR451M5B820KV70 |
|
|
820 |
35*100 |
136 |
2.1 |
LSR451M5B820KAA0 |
|
|
1000 |
42*80 |
111 |
2.2 |
LSR451M5B102KV80 |
|
|
1000 |
42*70 |
111 |
2.4 |
LSR451M5B102KV70 |
|
|
1200 |
42*90 |
93 |
2.9 |
LSR451M5B122KV90 |
|
|
1500 |
50*80 |
74 |
3.2 |
LSR451M5B152KC80 |
|
|
1500 |
42*105 |
74 |
3.3 |
LSR451M5B152KVA5 |
|
|
1800 |
50*100 |
62 |
3.8 |
LSR451M5B182KCA0 |
|
|
2200 |
65*80 |
51 |
5 |
LSR451M6C222KD80 |
|
|
2700 |
65*100 |
41 |
6.1 |
LSR451M6C272KDA0 |
|
|
3900 |
65*130 |
29 |
8.1 |
LSR451M6C392KDD0 |
|
|
3900 |
76*100 |
29 |
6.3 |
LSR451M6C392KEA0 |
|
|
4700 |
76*115 |
24 |
7.3 |
LSR451M6C472KEB5 |
|
|
5600 |
76*145 |
20 |
8.7 |
LSR451M6C562KEE5 |
|
| 25v |
330000 |
65*130 |
1 |
36.4 |
LSR250M6C334KDD0 |
|
390000 |
65*130 |
1 |
32.6 |
LSR250M6C394KDD0 |
|
|
560000 |
76*145 |
1 |
42.7 |
LSR250M6C564KEE5 |
|
|
560000 |
76*170 |
1 |
45 |
LSR250M6C564KE70 |
|
|
820000 |
89*145 |
1 |
58.2 |
LSR250M6C824KFE5 |
|
|
820000 |
89*145 |
1 |
62 |
LSR250M6C824KFE5 |
|
|
820000 |
89*170 |
1 |
61.5 |
LSR250M6C824KFH0 |
|
|
1200000 |
89*220 |
1 |
82.6 |
LSR250M6CC5KFN0 |
|
|
1500000 |
89*230 |
1 |
94 |
LSR250M6C155KFM0 |
|
| 35/40v |
18000 |
35*55 |
21 |
4.7 |
LSR400M5B183KA55 |
|
22000 |
42*50 |
17 |
5.3 |
LSR400M5B223KV50 |
|
|
27000 |
35*70 |
14 |
6.4 |
LSR400M5B273KA70 |
|
|
33000 |
35*80 |
12 |
7.4 |
LSR400M5B333KA80 |
|
|
33000 |
42*60 |
12 |
7.2 |
LSR400M5B333KV60 |
|
|
39000 |
35*100 |
10 |
8.9 |
LSR400M5B393KAA0 |
|
|
39000 |
42*70 |
10 |
8.2 |
LSR400M5B393KV70 |
|
|
39000 |
42*80 |
10 |
7.8 |
LSR400M5B393KV80 |
|
|
56000 |
50*70 |
7 |
10 |
LSR400M5B563KC70 |
|
|
56000 |
42*90 |
7 |
10.8 |
LSR400M5B563KV90 |
|
|
68000 |
50*80 |
6 |
11.6 |
LSR400M5B683KC80 |
|
|
68000 |
42*105 |
6 |
11.8 |
LSR400M5B683KVA5 |
|
|
82000 |
50*100 |
5 |
13.8 |
LSR400M5B823KCA0 |
|
|
100000 |
65*80 |
4 |
18.3 |
LSR400M6C104KD80 |
|
|
150000 |
65*100 |
3 |
24.4 |
LSR400M6C154KDA0 |
|
|
180000 |
76*100 |
2 |
23.1 |
LSR400M6C184KEA0 |
|
|
180000 |
65*130 |
2 |
29.6 |
LSR400M6C184KDD0 |
|
|
220000 |
76*115 |
2 |
26.9 |
LSR400M6C224KEB5 |
|
|
270000 |
76*145 |
1 |
32.6 |
LSR400M6C274KEE5 |
|
|
330000 |
76*170 |
1 |
38 |
LSR400M6C334KE70 |
|
|
470000 |
89*145 |
1 |
48.5 |
LSR400M6C474KFE5 |
|
|
470000 |
76*225 |
1 |
51.6 |
LSR400M6C474KEN0 |
|
|
560000 |
89*170 |
1 |
55.8 |
LSR400M6C564KFH0 |
|
|
680000 |
89*220 |
1 |
68.3 |
LSR400M6C684KFN0 |
|
|
680000 |
89*230 |
1 |
69.6 |
LSR400M6C684KFM0 |
|
| 50v |
6800 |
35*50 |
38 |
2.5 |
LSR500M5B682KA50 |
|
8200 |
35*50 |
33 |
2.8 |
LSR500M5B822KA50 |
|
|
10000 |
42*40 |
22 |
3.1 |
LSR500M5B103KV40 |
|
|
15000 |
42*50 |
18 |
3.3 |
LSR500M5B153KV50 |
|
|
15000 |
35*60 |
16 |
3.4 |
LSR500M5B153KA60 |
|
|
18000 |
42*60 |
14 |
6.1 |
LSR500M5B183KV60 |
|
|
22000 |
42*70 |
10 |
6.5 |
LSR500M5B223KV70 |
|
| 80v |
18000 |
42*90 |
18 |
6.2 |
LSR800M5B183KV90 |
|
18000 |
50*70 |
18 |
6.2 |
LSR800M5B183KC70 |
|
|
22000 |
42*105 |
14 |
7.9 |
LSR800M5B223KVA5 |
|
|
22000 |
50*80 |
14 |
7.2 |
LSR800M5B223KC80 |
|
|
27000 |
50*100 |
12 |
8.7 |
LSR800M5B273KCA0 |
|
|
39000 |
65*80 |
8 |
12.6 |
LSR800M6C393KD80 |
|
|
47000 |
65*100 |
7 |
15 |
LSR800M6C473KDA0 |
|
|
68000 |
65*130 |
5 |
15.7 |
LSR800M6C683KDD0 |
|
|
68000 |
76*100 |
5 |
19.7 |
LSR800M6C683KEA0 |
|
|
82000 |
76*115 |
4 |
18 |
LSR800M6C823KEB5 |
|
|
100000 |
76*145 |
3 |
21.7 |
LSR800M6C104KEE5 |
|
|
120000 |
76*170 |
3 |
25.1 |
LSR800M6C124KE70 |
|
|
150000 |
89*145 |
2 |
30 |
LSR800M6C154KFE5 |
|
|
180000 |
76*225 |
2 |
35 |
LSR800M6C184KEN0 |
|
|
180000 |
89*170 |
2 |
34.3 |
LSR800M6C184KFH0 |
|
|
220000 |
89*220 |
1 |
42.6 |
LSR800M6C224KFN0 |
|
|
270000 |
89*230 |
1 |
48 |
LSR800M6C274KFM0 |
|
| 100v |
3300 |
35*55 |
48 |
3.1 |
LSR101M5B332KA55 |
|
4700 |
35*70 |
34 |
4.1 |
LSR101M5B472KA70 |
|
|
4700 |
42*55 |
34 |
3.8 |
LSR101M5B472KV55 |
|
|
5600 |
35*80 |
28 |
4.7 |
LSR101M5B562KA80 |
|
|
5600 |
42*70 |
28 |
4.6 |
LSR101M5B562KV70 |
|
|
6800 |
35*100 |
23 |
5.7 |
LSR101M5B682KAA0 |
|
|
6800 |
42*70 |
23 |
5.3 |
LSR101M5B682KV70 |
|
|
8200 |
42*80 |
19 |
5.5 |
LSR101M5B822KV80 |
|
|
10000 |
50*70 |
16 |
6.5 |
LSR101M5B103KC70 |
|
|
10000 |
42*105 |
16 |
7.1 |
LSR101M5B103KVA5 |
|
|
12000 |
42*120 |
13 |
7.7 |
LSR101M5B123KVC0 |
|
|
12000 |
50*80 |
13 |
7.5 |
LSR101M5B123KC80 |
|
|
15000 |
50*100 |
11 |
9.2 |
LSR101M5B153KCA0 |
|
|
18000 |
65*80 |
9 |
12.1 |
LSR101M6C183KD80 |
|
|
22000 |
65*100 |
7 |
14.5 |
LSR101M6C223KDA0 |
|
|
27000 |
76*100 |
6 |
13.9 |
LSR101M6C273KEA0 |
|
|
33000 |
65*130 |
5 |
19.6 |
LSR101M6C333KDD0 |
|
|
39000 |
76*115 |
4 |
17.6 |
LSR101M6C393KEB5 |
|
|
47000 |
76*145 |
3 |
21.1 |
LSR101M6C473KEE5 |
|
|
56000 |
76*170 |
3 |
24.2 |
LSR101M6C563KE70 |
|
|
68000 |
89*145 |
2 |
28.6 |
LSR101M6C683KFE5 |
|
|
82000 |
76*225 |
2 |
33.4 |
LSR101M6C823KEN0 |
|
|
82000 |
89*170 |
2 |
33.1 |
LSR101M6C823KFH0 |
|
|
120000 |
89*220 |
1 |
44.5 |
LSR101M6C124KFN0 |
|
|
120000 |
89*230 |
1 |
45.3 |
LSR101M6C124KFM0 |
|
| 160v |
1800 |
35*55 |
62 |
2.8 |
LSR161M5B182KA55 |
|
2200 |
35*70 |
51 |
3.4 |
LSR161M5B222KA70 |
|
|
2200 |
42*55 |
51 |
3.1 |
LSR161M5B222KV55 |
|
|
2700 |
35*80 |
41 |
3.9 |
LSR161M5B272KA80 |
|
|
3300 |
42*70 |
34 |
4.2 |
LSR161M5B332KV70 |
|
|
3900 |
35*100 |
29 |
5.2 |
LSR161M5B392KAA0 |
|
| 250v |
5600 |
50*100 |
17 |
5.7 |
LSR251M5B562KCA0 |
|
5600 |
65*80 |
17 |
7.2 |
LSR251M6C562KD80 |
|
|
8200 |
65*100 |
12 |
8.7 |
LSR251M6C822KDA0 |
|
|
10000 |
65*120 |
12 |
11.4 |
LSR251M6C103KDC0 |
|
|
12000 |
76*100 |
8 |
12.1 |
LSR251M6C123KEA0 |
|
|
15000 |
76*115 |
6 |
14.1 |
LSR251M6C153KEB5 |
|
|
18000 |
76*115 |
6 |
14.1 |
LSR251M6C183KEB5 |
|
|
18000 |
76*145 |
5 |
16.8 |
LSR251M6C183KEE5 |
|
|
27000 |
76*170 |
5 |
17.7 |
LSR251M6C273KE70 |
|
|
27000 |
89*145 |
4 |
23.2 |
LSR251M6C273KFE5 |
|
|
33000 |
76*225 |
4 |
24.5 |
LSR251M6C333KEN0 |
|
|
39000 |
89*220 |
2 |
32.7 |
LSR251M6C393KFN0 |
|
|
39000 |
89*230 |
2 |
33.3 |
LSR251M6C393KFM0 |
|
| 350v |
680 |
35*55 |
141 |
1.8 |
LSR351M5B680KA55 |
|
1000 |
35*70 |
96 |
2.3 |
LSR351M5B102KA70 |
|
|
1200 |
42*55 |
80 |
2.8 |
LSR351M5B122KV55 |
|
|
1200 |
35*80 |
80 |
2.7 |
LSR351M5B122KA80 |
|
|
1500 |
35*100 |
64 |
3 |
LSR351M5B152KAA0 |
|
|
1500 |
42*80 |
64 |
3.4 |
LSR351M5B152KV80 |
|
|
1800 |
42*90 |
53 |
3.6 |
LSR351M5B182KV90 |
|
|
1800 |
50*70 |
53 |
3.8 |
LSR351M5B182KC70 |
|
|
2200 |
50*80 |
43 |
4.2 |
LSR351M5B222KC80 |
|
|
2200 |
42*105 |
43 |
4.3 |
LSR351M5B222KVA5 |
|
|
2700 |
50*100 |
35 |
5 |
LSR351M5B272KCA0 |
|
|
3900 |
65*80 |
24 |
7.2 |
LSR351M6C392KD80 |
|
|
4700 |
65*100 |
20 |
8.6 |
LSR351M6C472KDA0 |
|
|
5600 |
76*100 |
17 |
8.2 |
LSR351M6C562KEA0 |
|
|
6800 |
65*130 |
14 |
11.5 |
LSR351M6C682KDD0 |
|
|
6800 |
76*115 |
14 |
9.5 |
LSR351M6C682KEB5 |
|
|
8200 |
76*145 |
12 |
11.4 |
LSR351M6C822KEE5 |
|
|
10000 |
76*170 |
10 |
13.2 |
LSR351M6C103KE70 |
|
|
12000 |
89*145 |
8 |
15.5 |
LSR351M6C123KFE5 |
|
|
15000 |
76*225 |
6 |
18.4 |
LSR351M6C153KEN0 |
|
|
15000 |
89*170 |
6 |
18.3 |
LSR351M6C153KFH0 |
|
|
18000 |
89*200 |
5 |
22.2 |
LSR351M6C183KFO0 |
|
|
22000 |
89*230 |
5 |
22.6 |
LSR351M6C223KFM0 |
|
| 400v |
560 |
35*55 |
227 |
1.4 |
LSR401M5B560KA55 |
|
680 |
42*55 |
187 |
1.7 |
LSR401M5B680KV55 |
|
|
820 |
35*70 |
155 |
1.8 |
LSR401M5B820KA70 |
|
|
1000 |
35*80 |
127 |
2.2 |
LSR401M5B102KA80 |
|
|
1000 |
42*70 |
127 |
2.2 |
LSR401M5B102KV80 |
|
|
1200 |
35*100 |
106 |
2.5 |
LSR401M5B122KAA0 |
|
|
1200 |
42*80 |
106 |
2.4 |
LSR401M5B122KV80 |
|
|
1500 |
42*90 |
85 |
2.8 |
LSR401M5B152KV90 |
|
|
1500 |
50*70 |
85 |
3 |
LSR401M5B152KC70 |
|
|
1800 |
50*80 |
71 |
3.3 |
LSR401M5B182KC80 |
|
|
1800 |
42*105 |
71 |
3.3 |
LSR401M5B182KVA5 |
|
|
2200 |
50*100 |
58 |
3.9 |
LSR401M5B222KCA0 |
|
| 450v |
6800 |
76*170 |
16 |
10.1 |
LSR451M6C682KE70 |
|
8200 |
89*145 |
14 |
11.9 |
LSR451M6C822KFE5 |
|
|
10000 |
76*225 |
11 |
13.9 |
LSR451M6C103KEN0 |
|
|
12000 |
89*170 |
9 |
15.1 |
LSR451M6C123KFH0 |
|
|
15000 |
89*210 |
7 |
18.8 |
LSR451M6C153KFP0 |
|
|
18000 |
89*230 |
5 |
19.1 |
LSR451M6C183KFM0 |
|
| 500v |
390 |
35*55 |
286 |
1.3 |
LSR501M5B390KA55 |
|
470 |
42*55 |
237 |
1.5 |
LSR501M5B470KV55 |
|
|
560 |
35*70 |
199 |
1.7 |
LSR501M5B560KA70 |
|
|
680 |
35*80 |
164 |
2 |
LSR501M5B680KA80 |
|
|
680 |
42*60 |
164 |
1.9 |
LSR501M5B680KV60 |
|
|
820 |
35*100 |
136 |
2.2 |
LSR501M5B820KAA0 |
|
|
820 |
42*70 |
136 |
2.1 |
LSR501M5B820KV70 |
|
|
1000 |
50*70 |
111 |
2.7 |
LSR501M5B102KC70 |
|
|
1200 |
42*90 |
93 |
2.7 |
LSR501M5B122KV90 |
|
|
1200 |
50*80 |
93 |
2.8 |
LSR501M5B122KC80 |
|
|
1500 |
50*90 |
60 |
3.5 |
LSR501M5B152KC90 |
|
|
2200 |
65*80 |
51 |
5 |
LSR501M6C222KD80 |
|
|
2700 |
65*100 |
41 |
6.1 |
LSR501M6C272KDA0 |
|
|
3300 |
76*100 |
34 |
7.3 |
LSR501M6C332KEA0 |
|
|
3900 |
65*130 |
29 |
6.4 |
LSR501M6C392KDD0 |
|
|
4700 |
76*115 |
24 |
7.3 |
LSR501M6C472KEB5 |
|
|
5600 |
76*145 |
20 |
8.7 |
LSR501M6C562KEE5 |
|
|
6800 |
76*170 |
16 |
10.1 |
LSR501M6C682KE70 |
|
|
8200 |
89*145 |
14 |
11.9 |
LSR501M6C822KFE5 |
|
|
10000 |
76*220 |
11 |
13.9 |
LSR501M6C103KEN0 |
|
|
12000 |
76*230 |
9 |
15.1 |
LSR501M6C123KEM0 |
|
|
15000 |
89*200 |
7 |
18.8 |
LSR501M6C153KFO0 |
|
|
15000 |
89*230 |
7 |
19.1 |
LSR501M6C153KFM0 |
|
|
18000 |
89*230 |
5 |
20.3 |
LSR501M6C183KFM0 |
◆額定紋波電流頻率修正系數
紋波頻率與標準品一覽表的規定值相異時，請使用小于乘以下表系數所得之值的值。
●頻率(lv)修正系數
|
頻率(lv)（HZ） |
50 |
120 |
300 |
1K |
3K |
10K |
50K |
|
16～50VDC |
0.95 |
1.00 |
1.03 |
1.05 |
- |
1.09 |
1.12 |
|
63～80VDC |
0.90 |
1.00 |
1.06 |
1.10 |
- |
1.18 |
1.22 |
|
100～250VDC |
0.80 |
1.00 |
1.12 |
1.22 |
- |
1.30 |
1.33 |
|
350～500VDC |
0.80 |
1.00 |
1.20 |
1.50 |
1.60 |
- |
- |
※鋁電解電容器由于在紋波電流疊加時自我發熱、溫度上升而老化，每升溫5～10℃壽命減少一半。
要(yao)想保(bao)持長(chang)壽命請(qing)在使用(yong)過程中降低(di)紋波(bo)電流。此(ci)外，額定電壓(ya)的80%以上到額定電壓(ya)范圍內可通過降低(di)電壓(ya)延(yan)長(chang)壽命。
深圳市青佺電子有限公司 版權所有
全國統一服務熱線：0755-27299931 / QQ：1498113525 / E-mail:sunny@shsga.org.cn
公司地址：深圳市福永鎮福海科技工業園
鄧白氏(shi)編(bian)碼：420674259
資料下載
