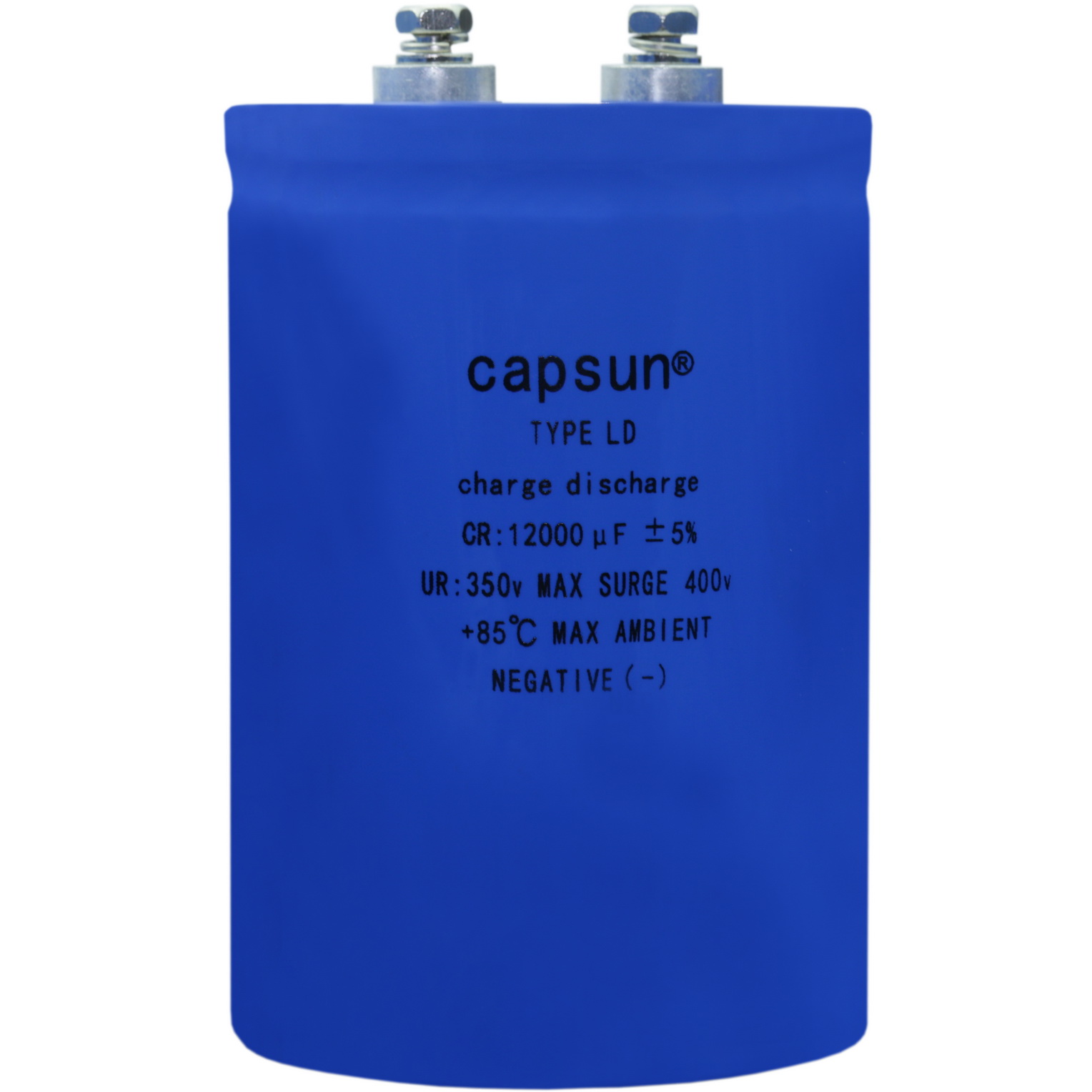

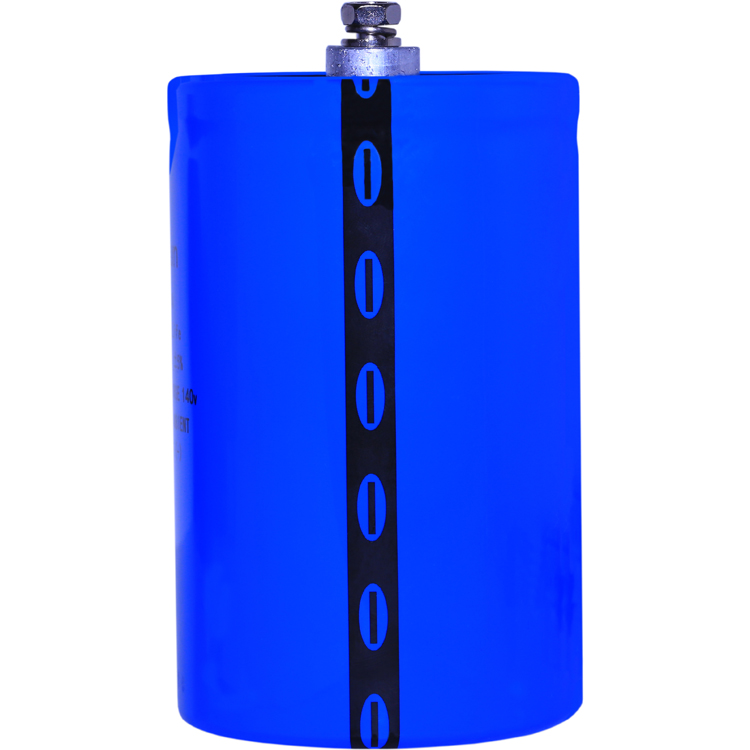

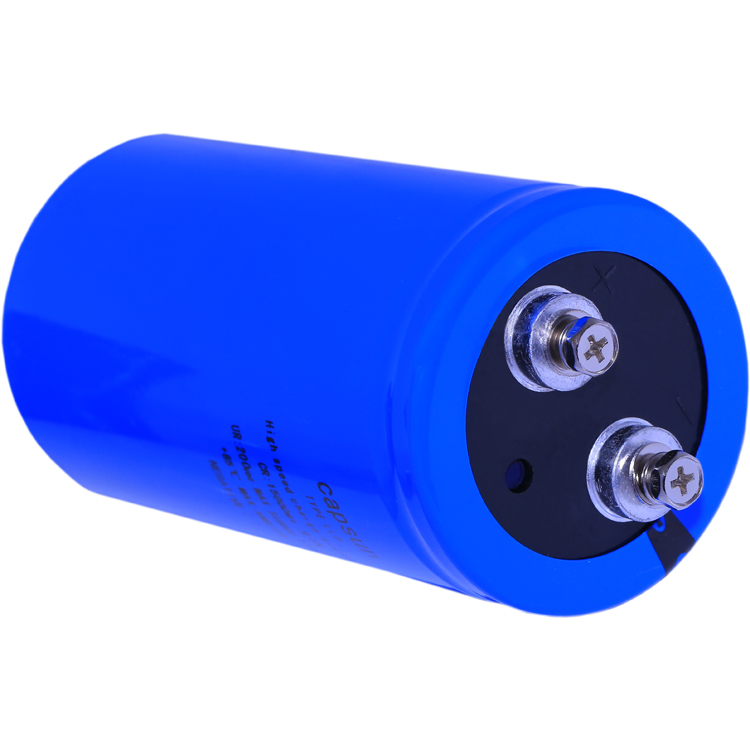

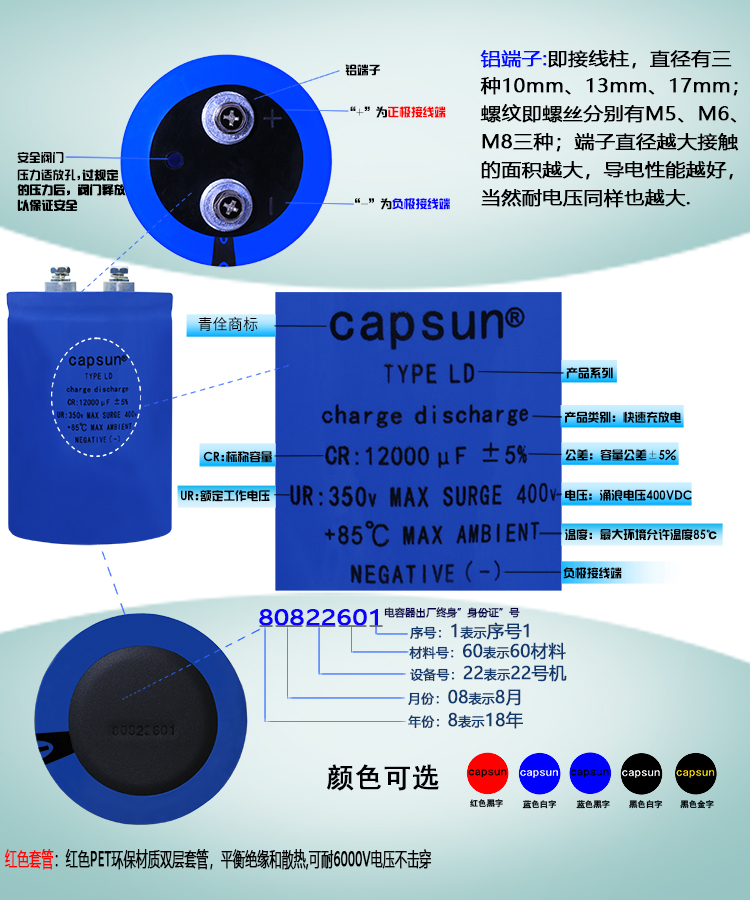

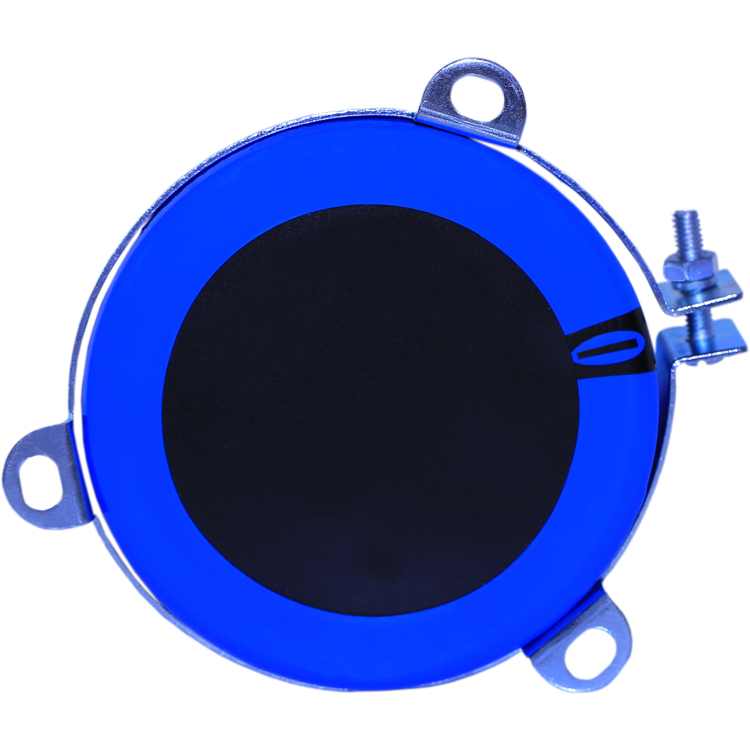

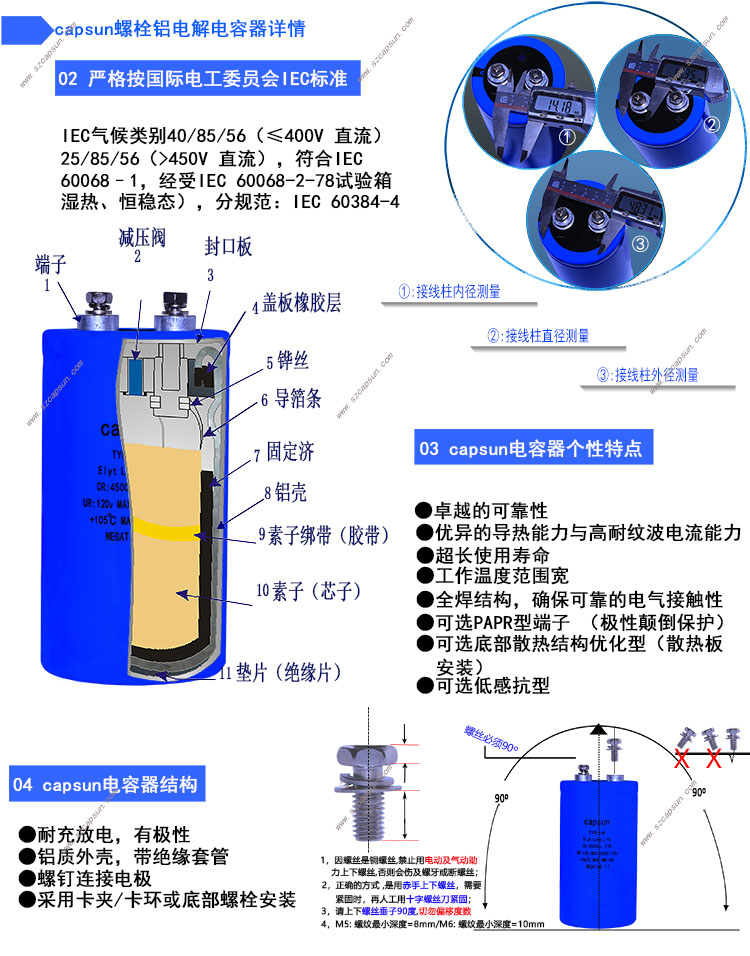

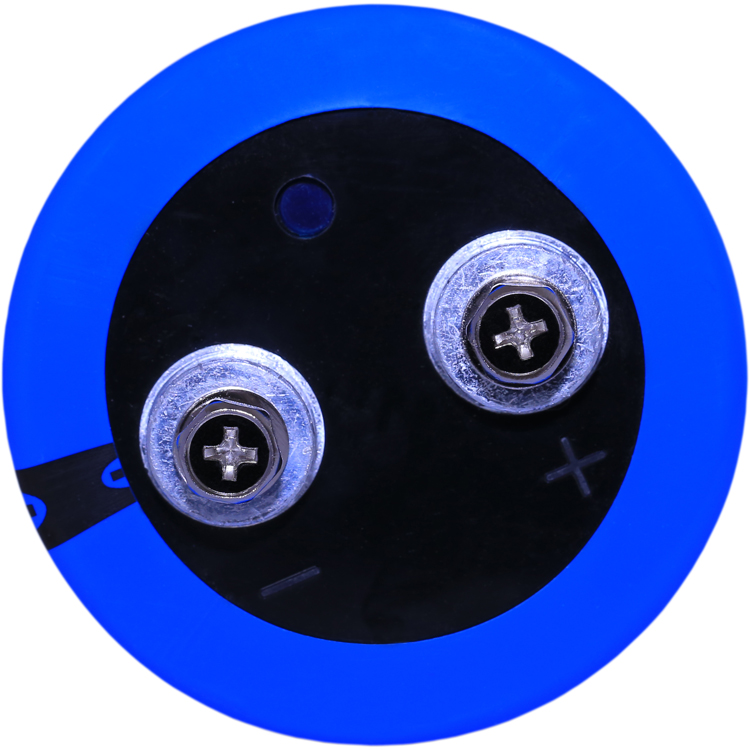

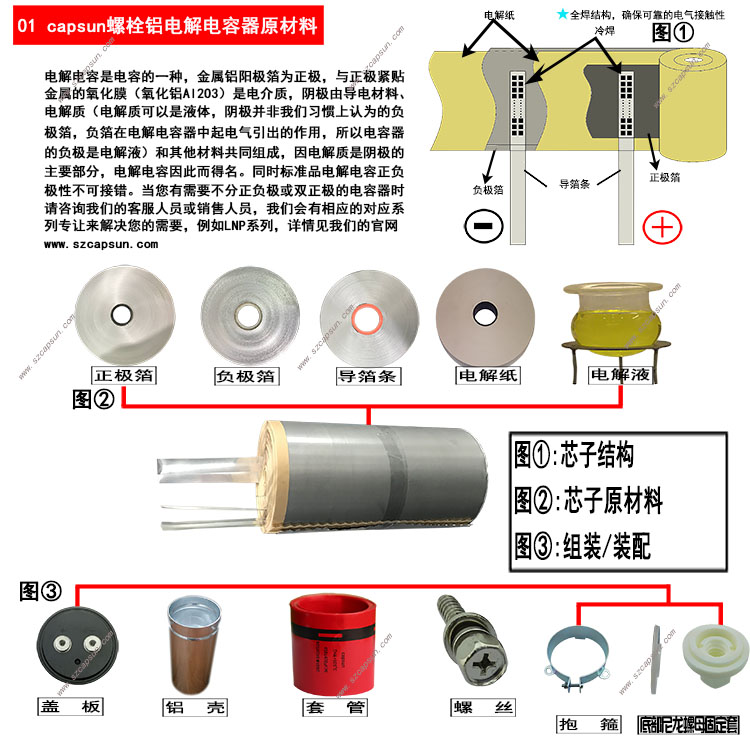

LD系列 |
 |
●充放電次(ci)數大于1000萬次(ci)，或2年以上實際使用品質保證(zheng)。
●適用于柜員機退卡使用、啟動多晶硅還原電源、太陽能光伏、玻璃玻纖、鋼鐵冶金、石油化工、機械制造、核電等設備、數控車床、
數控銑床、火花機，平面磨(mo)床，鉆功機，加工中心機，精雕機等設備(bei)
◆規格表
|
項目 |
特性 |
||
|
工作溫度范圍(wei) |
-25~+85℃ |
||
|
額定(ding)電壓范圍 |
350~550VDC |
||
|
靜電容量容許差 |
± 20%（M）---------------20℃、120HZ |
||
|
漏電(dian)流 |
I=0.02CV或者5mA中任意一個較小值 |
||
|
損失角正切值（tanδ） |
≤0.25--------------------------20℃、120HZ |
||
|
溫(wen)度特性 |
靜電(dian)容量變化率 C（-25℃）/C（+20℃）≥0.7 120HZ |
||
|

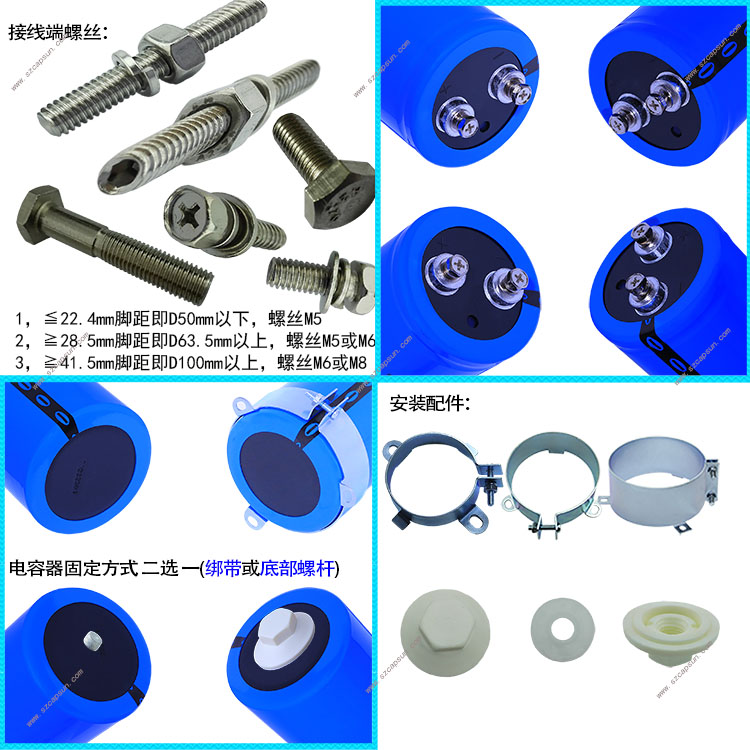

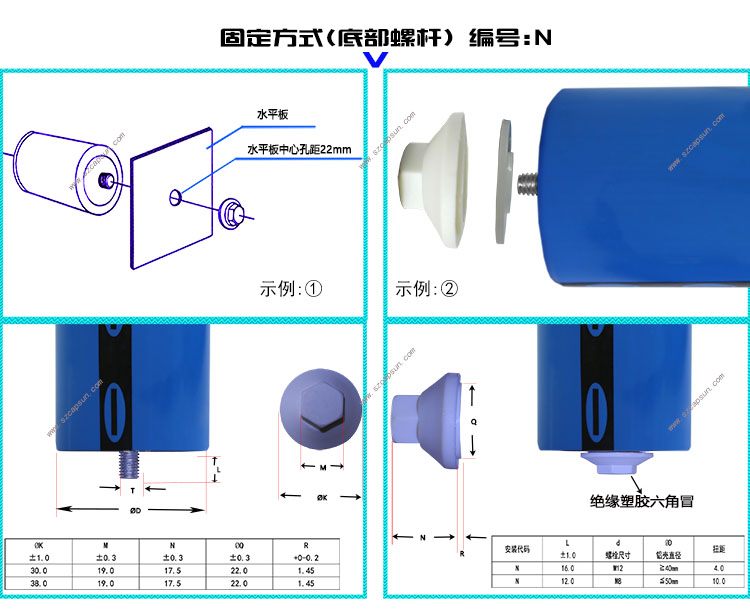

絕緣(yuan)電阻(zu) |
全部端子和(he)容器(qi)套(tao)上的(de)絕(jue)緣套(tao)且(qie)安裝的(de)固定(ding)帶之間用(yong)DC500V的(de)絕(jue)緣電(dian)阻測(ce)定(ding)儀測(ce)出的(de)值≥100MΩ |
||
|
絕緣(yuan)耐壓 |
全部端子和容器套(tao)的絕緣套(tao)且安裝的固定帶之間施加AC2000V的電壓1分鐘未出現異常。 |
||
|

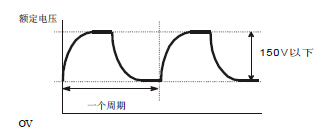

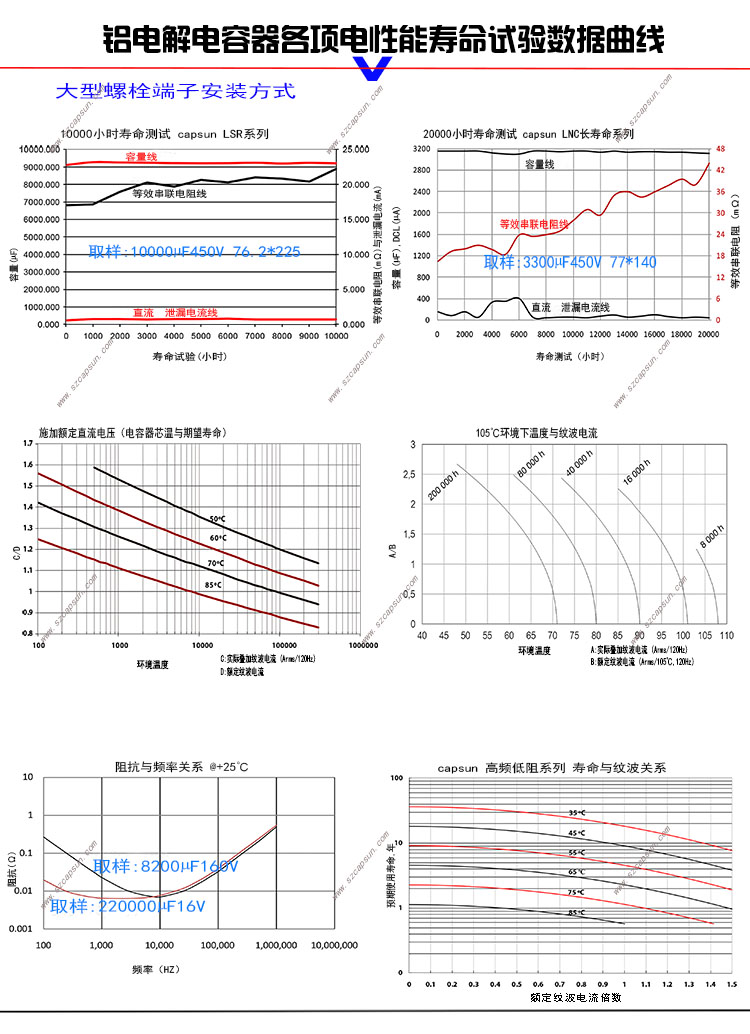

充放(fang)電特性 |
環境溫度40℃，充放電電壓差（△V）=額定電壓x0.3，在周期3HZ時進行1000萬次充放電后， |
||
|
靜電容量變化率(lv) |
≤初始(shi)值的±20% |
  |
|
|
損失(shi)角正切(qie)值 |
≤初始規(gui)格值的200% |
||
|
漏電流 |
≤初始規(gui)格值 |
||
|
外觀 |
無顯著異常 |
||
|
高溫無負荷特性 |
在85℃環境下，無負荷放置500小時后待溫度恢復到20℃，進行試驗前處理（JIS C 5101-4 4.1項） |
||
|
靜電容(rong)量變化率 |
≤初始值(zhi)的±20% |
||
|
損失角正切值 |
≤初始規格(ge)值的(de)200% |
||
|
漏電流 |
≤初始規格值 |
||
|
工(gong)作電壓 |
額定(ding)容(rong)量 |

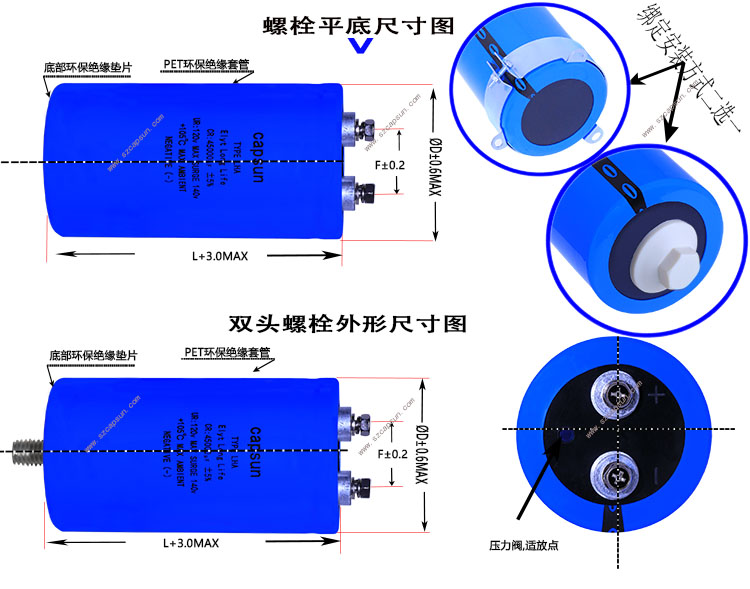

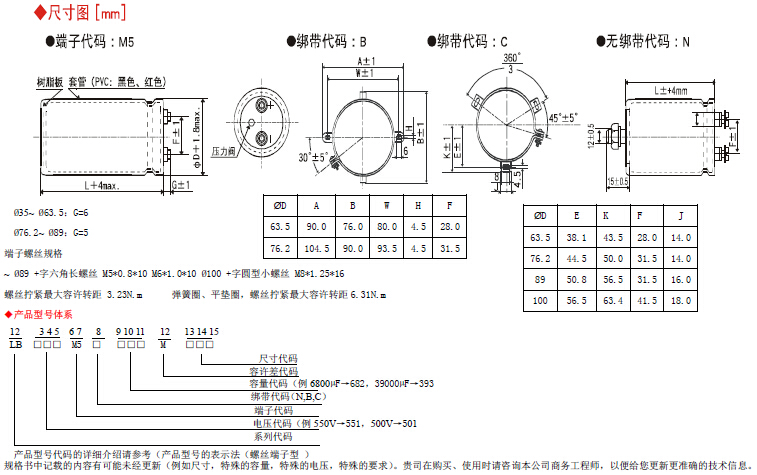

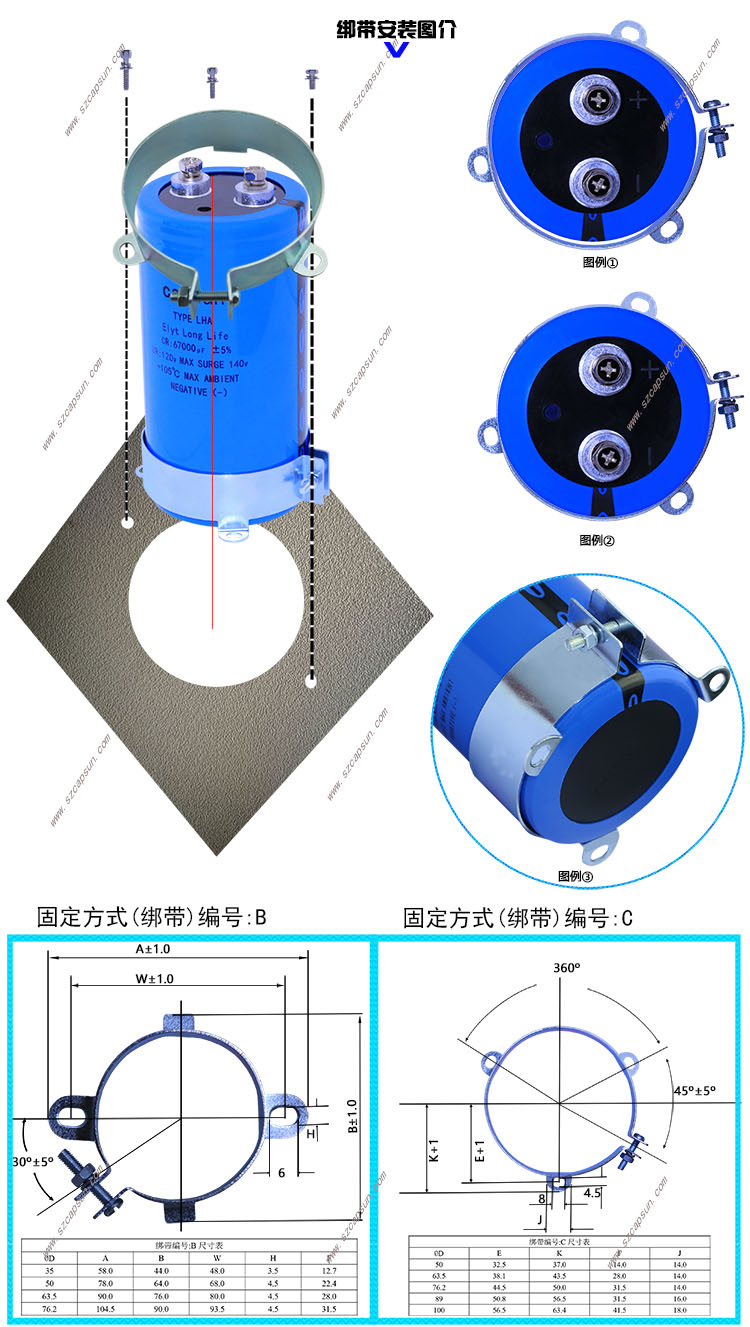

外殼(ke)尺寸(cun)D x L |
損耗角120Hz,20℃ |
額定紋波(bo)電(dian)流(liu) |
產品型號 |
| [V] |
[μF] |
[mm] |
[tanδ] |
（Ams/85℃,120Hz） |
|
| 350 |
1500 |
50*65 |
0.25 |
5.09 |
LD351M5C152MC65 |
|
1800 |
50*75 |
0.25 |
5.93 |
LD351M5C182MC75 |
|
| 2200 |
50*96 |
0.25 |
7.3 |
LD351M5C222MC96 |
|
|
2700 |
50*115 |
0.25 |
8.76 |
LD351M5C272MCB5 |
|
|
3300 |
63.5*85 |
0.25 |
9.71 |
LD351M5C332MD85 |
|
|
3900 |
50*130 |
0.25 |
11.1 |
LD351M5C392MCD0 |
|
|
3900 |
63.5*96 |
0.25 |
11.1 |
LD351M5C392MD96 |
|
|
4700 |
63.5*115 |
0.25 |
13.2 |
LD351M5C472MDB5 |
|
|
5600 |
63.5*130 |
0.25 |
15.2 |
LD351M5C562MDD0 |
|
|
5600 |
76.2*96 |
0.25 |
14.3 |
LD351M5C562ME96 |
|
|
6800 |
76.2*115 |
0.25 |
17 |
LD351M5C682MEB5 |
|
|
8200 |
76.2*130 |
0.25 |
19.6 |
LD351M5C822MED0 |
|
|
10000 |
76.2*155 |
0.25 |
23.4 |
LD351M5C103MEF5 |
|
|
12000 |
89*130 |
0.25 |
24.1 |
LD351M5C123MFD0 |
|
|
15000 |
89*155 |
0.25 |
29.1 |
LD351M5C153MFF5 |
|
|
400 |
1200 |
50*65 |
0.25 |
4.55 |
LD401M5C122MC65 |
|
1500 |
50*75 |
0.25 |
5.41 |
LD401M5C152MC75 |
|
|
1800 |
50*85 |
0.25 |
6.26 |
LD401M5C182MC85 |
|
|
2200 |
50*96 |
0.25 |
7.3 |
LD401M5C222MC96 |
|
|
2700 |
50*115 |
0.25 |
8.76 |
LD401M5C272MCB5 |
|
|
3300 |
63.5*96 |
0.25 |
10.2 |
LD401M5C332MD96 |
|
|
3900 |
63.5*115 |
0.25 |
12 |
LD401M5C392MDB5 |
|
|
4700 |
63.5*130 |
0.25 |
13.9 |
LD401M5C472MDD0 |
|
|
4700 |
76.2*96 |
0.25 |
13.1 |
LD401M5C472ME96 |
|
|
5600 |
63.5*155 |
0.25 |
16.5 |
LD401M5C562MDF5 |
|
|
6800 |
76.2*115 |
0.25 |
17 |
LD401M5C682MEB5 |
|
|
8200 |
76.2*155 |
0.25 |
21.2 |
LD401M5C822MEF5 |
|
|
10000 |
89*130 |
0.25 |
22 |
LD401M5C103MFD0 |
|
|
12000 |
89*155 |
0.25 |
26 |
LD401M5C123MFF5 |
|
|
450 |
1000 |
50*70 |
0.25 |
3.87 |
LD451M5C102MC70 |
|
1200 |
50*75 |
0.25 |
4.36 |
LD451M5C122MC75 |
|
|
1500 |
50*90 |
0.25 |
5.28 |
LD451M5C152MC90 |
|
|
1800 |
50*96 |
0.25 |
5.95 |
LD451M5C182MC96 |
|
|
2200 |
50*130 |
0.25 |
7.54 |
LD451M5C222MCD0 |
|
|
2700 |
63.5*96 |
0.25 |
8.34 |
LD451M5C272MD96 |
|
|
3300 |
63.5*115 |
0.25 |
9.97 |
LD451M5C332MDB5 |
|
|
3900 |
63.5*130 |
0.25 |
11.4 |
LD451M5C392MDD0 |
|
|
3900 |
76.2*96 |
0.25 |
11.1 |
LD451M5C392ME96 |
|
|
4700 |
63.5*155 |
0.25 |
13.6 |
LD451M5C472MDF5 |
|
|
4700 |
76.2*115 |
0.25 |
13.2 |
LD451M5C472MEB5 |
|
|
5600 |
76.2*130 |
0.25 |
15.2 |
LD451M5C562MED0 |
|
|
6800 |
76.2*155 |
0.25 |
18.1 |
LD451M5C682MEF5 |
|
|
8200 |
89*130 |
0.25 |
19.2 |
LD451M5C822MFD0 |
|
|
500 |
470 |
50*60 |
0.25 |
2.17 |
LD501M5C471MC60 |
|
680 |
50*65 |
0.25 |
2.7 |
LD501M5C681MC65 |
|
|
820 |
50*75 |
0.25 |
3.15 |
LD501M5C821MC75 |
|
|
1000 |
50*85 |
0.25 |
3.67 |
LD501M5C102MC85 |
|
|
1200 |
50*96 |
0.25 |
4.22 |
LD501M5C122MC96 |
|
|
1500 |
50*115 |
0.25 |
5.14 |
LD501M5C152MCB5 |
|
|
1500 |
63.5*96 |
0.25 |
5.42 |
LD501M5C152MD96 |
|
|
1800 |
50*130 |
0.25 |
5.95 |
LD501M5C182MCD0 |
|
|
1800 |
63.5*96 |
0.25 |
5.94 |
LD501M5C182MD96 |
|
|
2200 |
63.5*115 |
0.25 |
7.1 |
LD501M5C222MDB5 |
|
|
2200 |
76.2*96 |
0.25 |
7.3 |
LD501M5C222ME96 |
|
|
2700 |
63.5*130 |
0.25 |
8.31 |
LD501M5C272MDD0 |
|
|
3300 |
76.2*115 |
0.25 |
9.65 |
LD501M5C332MEB5 |
|
|
3900 |
76.2*130 |
0.25 |
11.1 |
LD501M5C392MED0 |
|
|
4700 |
76.2*155 |
0.25 |
13.1 |
LD501M5C472MEF5 |
|
|
6800 |
89*155 |
0.25 |
15.9 |
LD501M5C682MFF5 |
|
|
550 |
390 |
50*60 |
0.25 |
1.98 |
LD551M5C391MC60 |
|
560 |
50*65 |
0.25 |
2.45 |
LD551M5C561MC65 |
|
|
680 |
50*75 |
0.25 |
2.87 |
LD551M5C681MC75 |
|
|
820 |
50*85 |
0.25 |
3.32 |
LD551M5C821MC85 |
|
|
1200 |
50*115 |
0.25 |
4.6 |
LD551M5C122MCB5 |
|
|
1500 |
63.5*96 |
0.25 |
5.42 |
LD551M5C152MD96 |
|
|
1800 |
76.2*80 |
0.25 |
6.12 |
LD551M5C182ME80 |
|
|
2200 |
76.2*96 |
0.25 |
7.3 |
LD551M5C222ME96 |
|
|
2700 |
76.2*115 |
0.25 |
8.73 |
LD551M5C272MEB5 |
|
|
3300 |
76.2*130 |
0.25 |
10.2 |
LD551M5C332MED0 |
|
|
5600 |
89*155 |
0.25 |
14.5 |
LD551M5C562MFF5 |
◆ 額定紋波(bo)電(dian)流頻率修(xiu)正系數(shu)
紋波頻率(lv)與標準(zhun)品一覽(lan)表(biao)(biao)的規定值(zhi)(zhi)相異時，請使用小于乘以下表(biao)(biao)系數所得之(zhi)值(zhi)(zhi)的值(zhi)(zhi)。
● 頻(pin)率修正(zheng)系數
|
頻率（HZ） |
50 |
120 |
300 |
1K |
3K |
|
修正(zheng)系數(shu) |
0.8 |
1.0 |
1.1 |
1.3 |
1.4 |
※ 鋁電(dian)解電(dian)容器由于在紋波電(dian)流疊(die)加時自(zi)我(wo)發熱、溫度上升而(er)老化，第升溫5～10℃壽命減少(shao)一半。
要想保持長壽命請在使(shi)用過(guo)程中降(jiang)低紋(wen)波電流。此外(wai)，額定電壓的80%以上到(dao)額定電壓范圍內可通(tong)過(guo)降(jiang)低電壓延長壽命。
