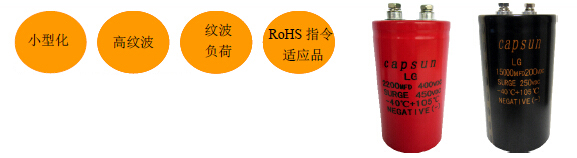

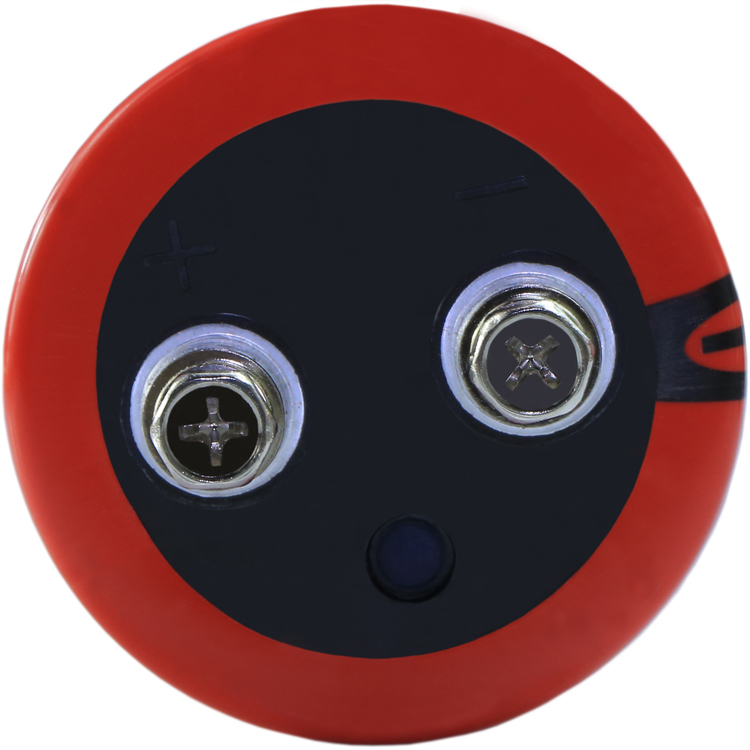

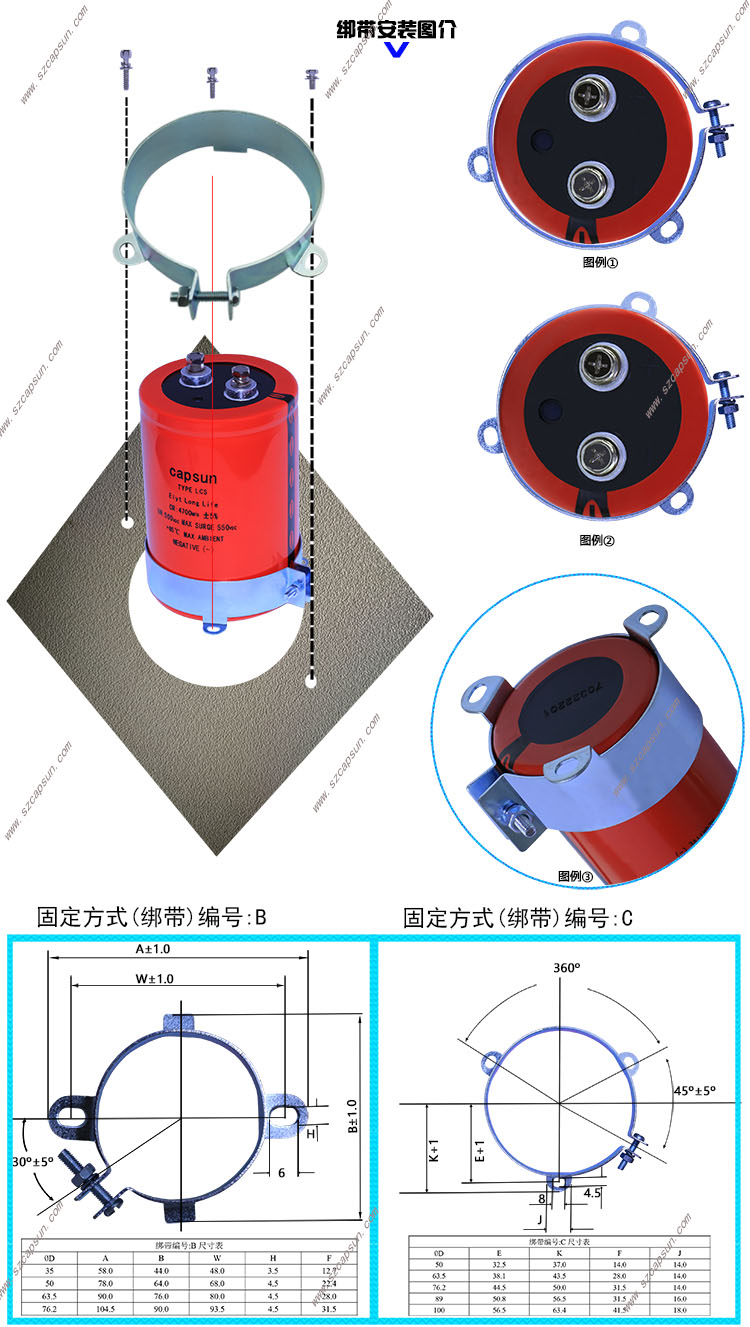

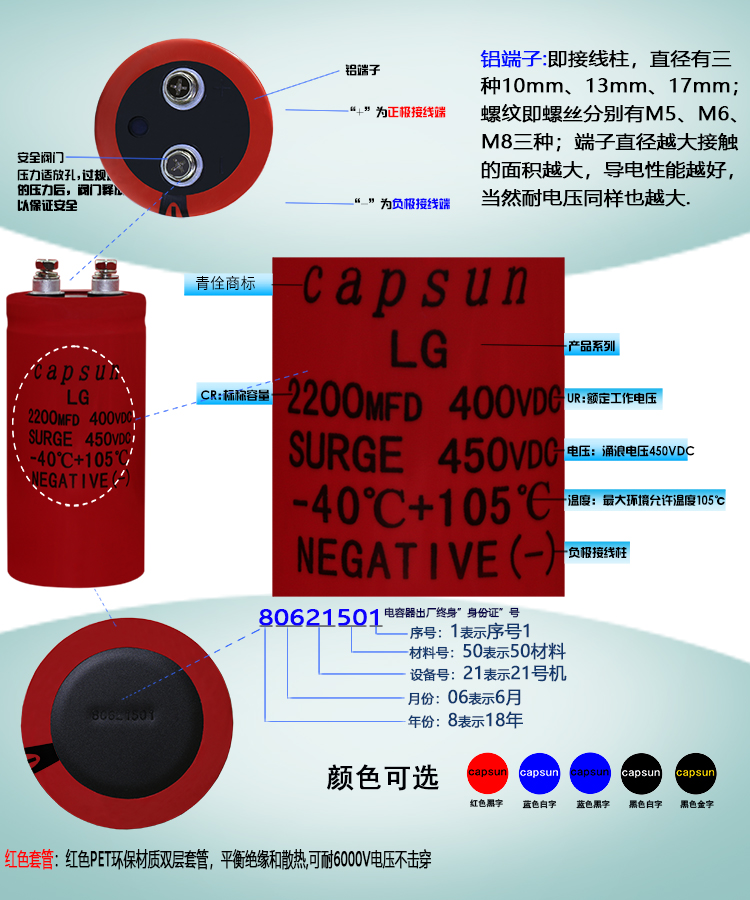

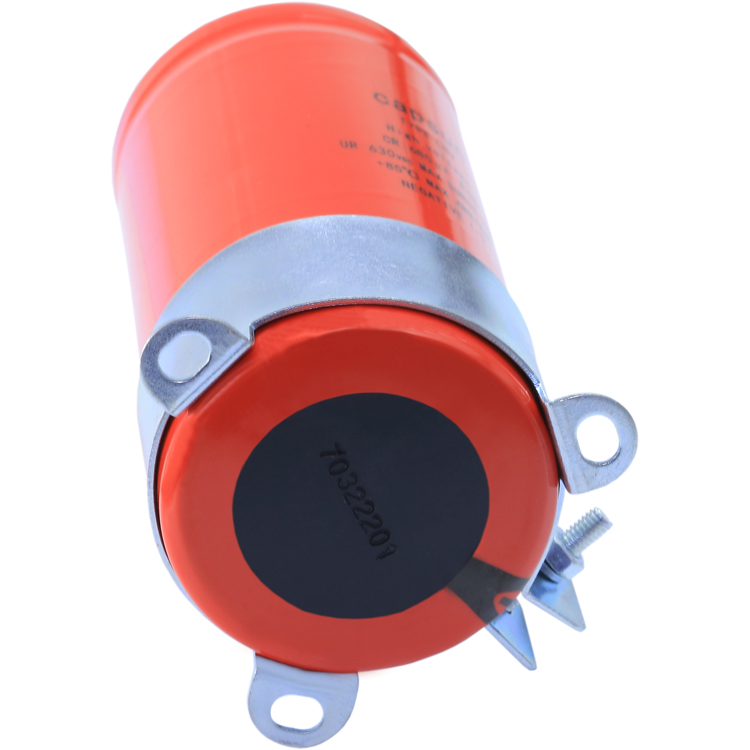

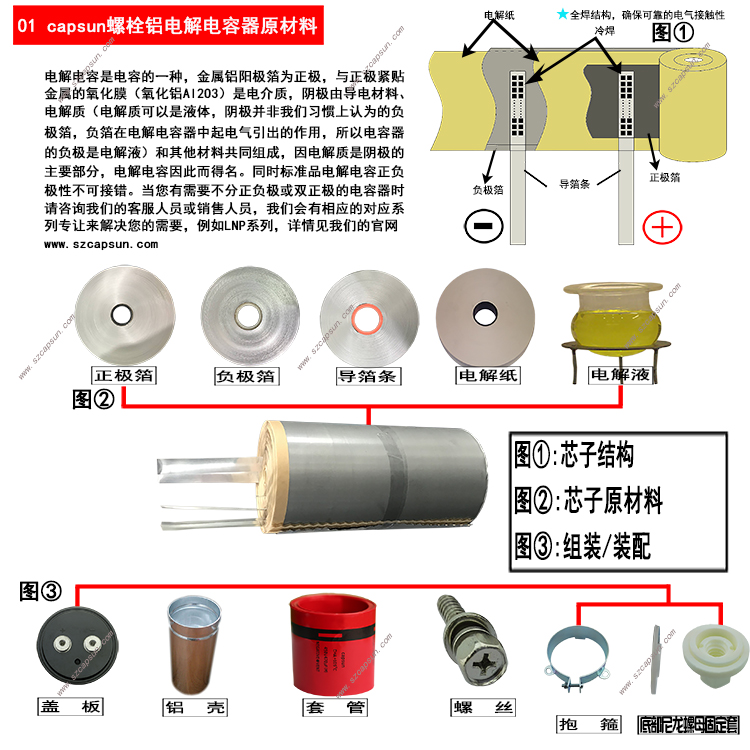

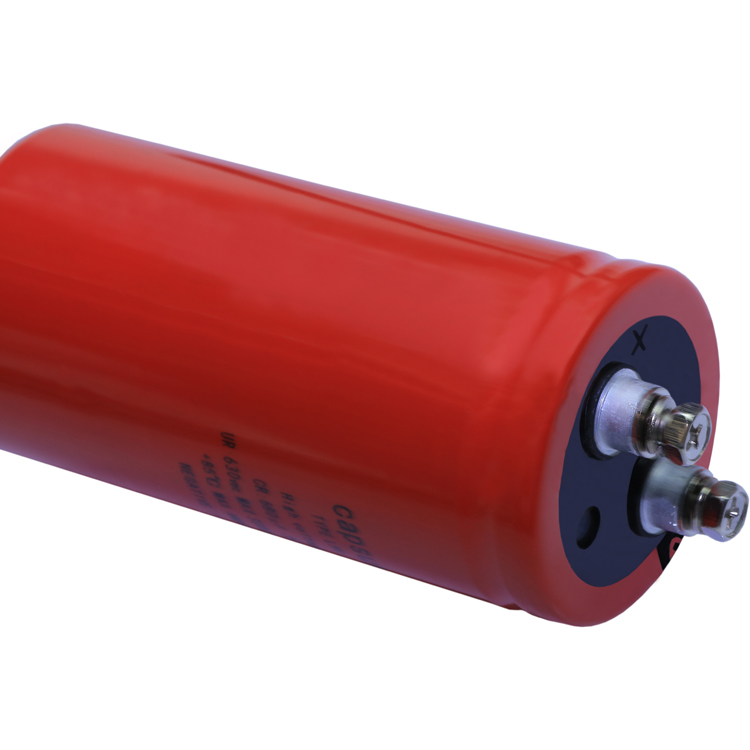

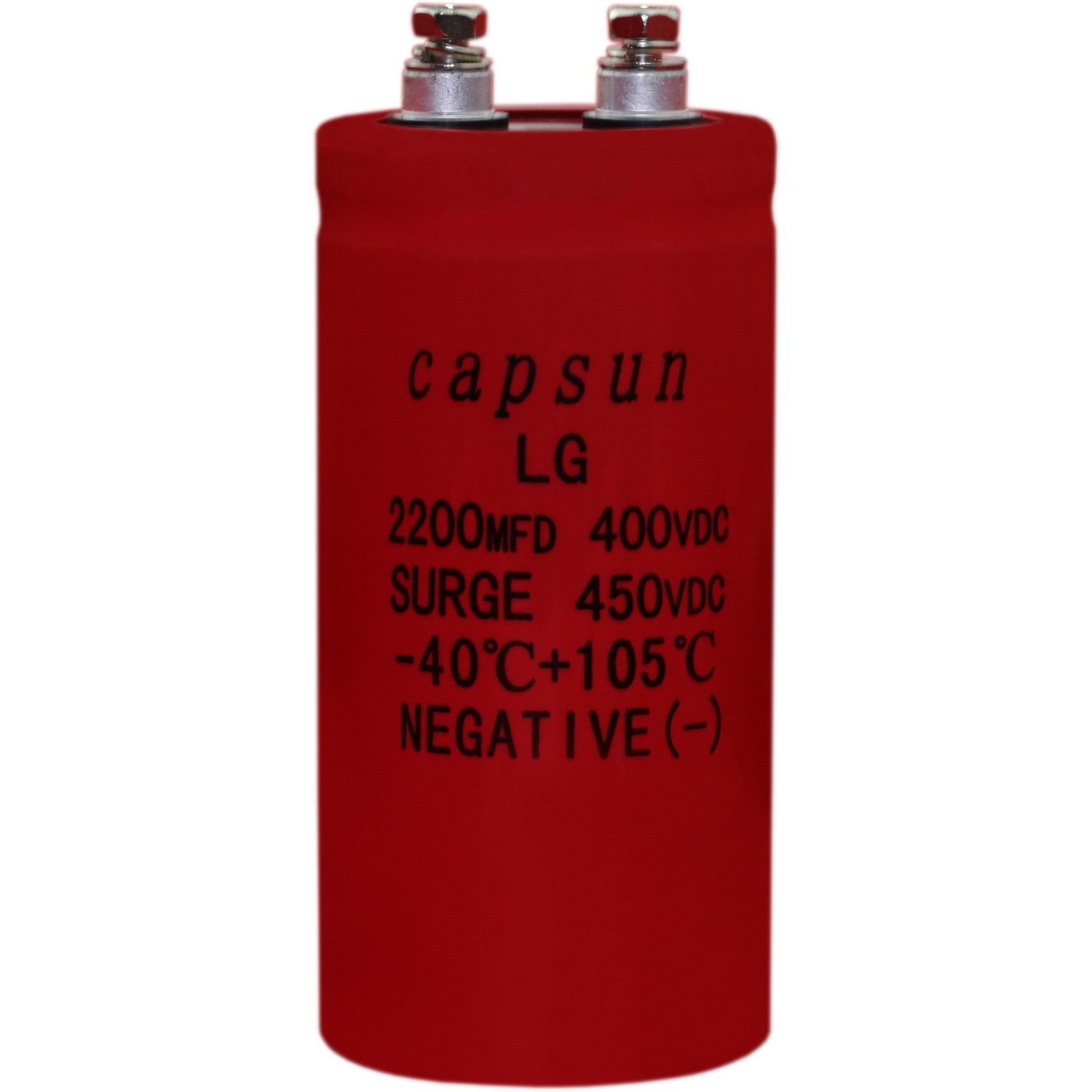

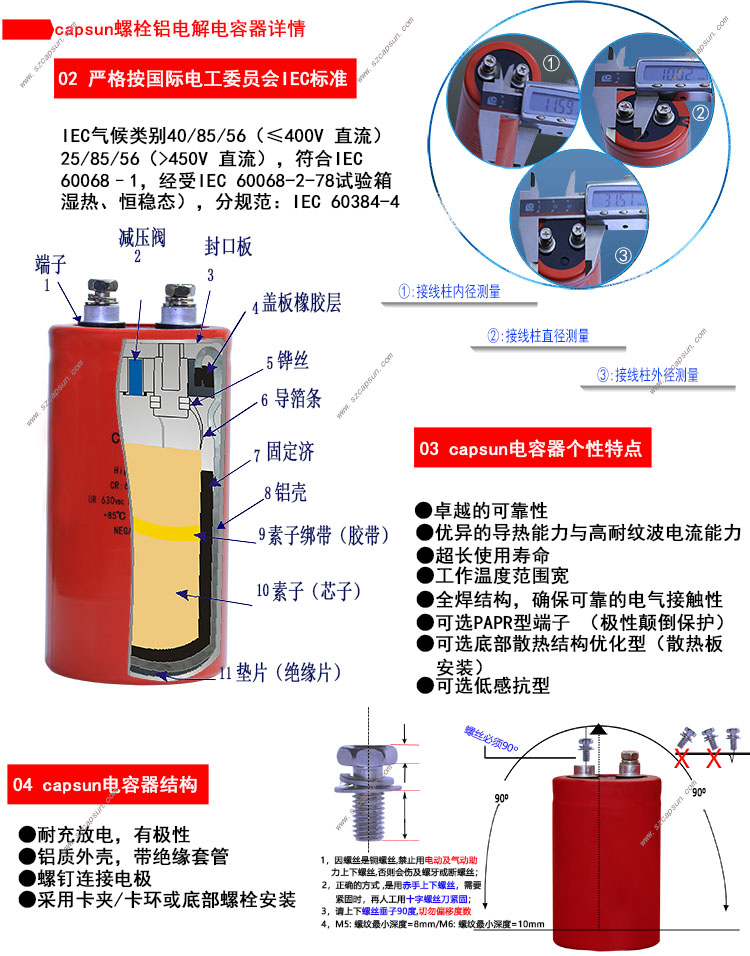

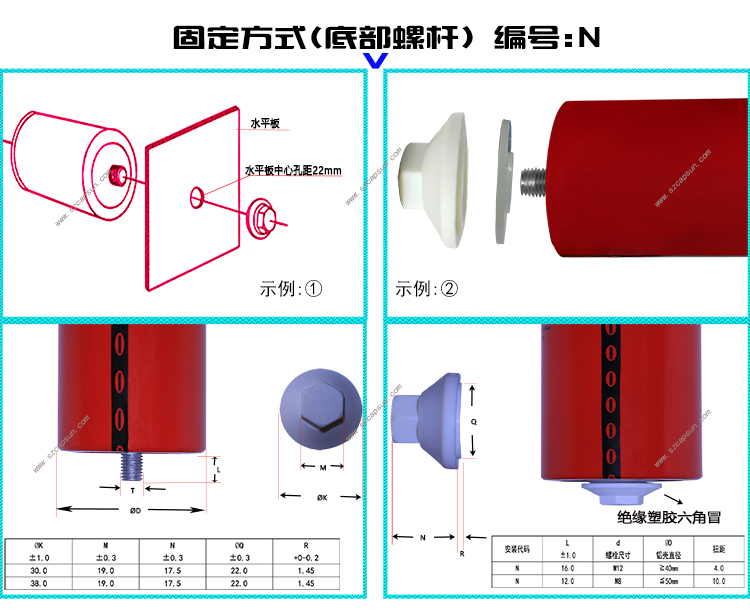

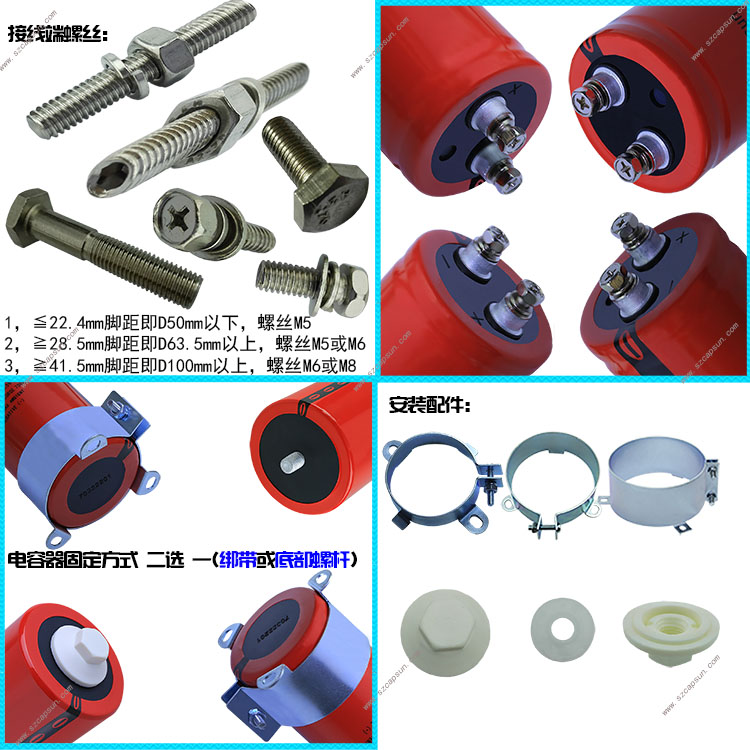

LG 系列(lie) |
|
●小尺寸，超高紋(wen)波(bo)化(hua)品。
●保證85℃2000小(xiao)時,對應大(da)電流，最(zui)適合于變頻器(qi)(qi),電機驅動器(qi)(qi),變壓器(qi)(qi)，變流器(qi)(qi),伺(si)服系(xi)統
◆規格表
|
項目 |
特性 |
||
|
工作(zuo)溫度范圍(wei) |
-25~+105℃ |
||
|
額定電(dian)壓范圍 |
350~550VDC |
||
|
靜電(dian)容(rong)量容(rong)許差(cha) |
± 20%（M） -------------------------- 20℃/120HZ |
||
|
漏電流 |
I=0.02CV或者5mA中任意一個較小值 |
||
|
損失角正(zheng)切值（tanδ） |
≤0.25 ----------------- 20℃/120HZ |
||
|
溫度特(te)性(xing) |
靜電容量(liang)變化(hua)率 C（-25℃）/C（+20℃）≥0.7 ---------------- 120HZ |
||
|
絕(jue)緣電阻(zu) |
全部端子(zi)和容器套(tao)上的(de)絕緣(yuan)套(tao)且安裝的(de)固定帶之間(jian)用DC500V的(de)絕緣(yuan)電阻(zu)測(ce)定儀測(ce)出的(de)值≥100MΩ |
||
|
絕緣(yuan)耐(nai)壓(ya) |
全部端子和容器套的(de)絕(jue)緣套且安裝的(de)固(gu)定帶之間施加AC2000V的(de)電壓1分(fen)鐘(zhong)未出現異(yi)常。 |
||
|
耐久性 |
在85℃環境下，不超過額定電壓的范圍下疊加額定紋波電流，連續加載額定電壓2000小時后， |
||
|
靜電容量變化率 |
≤初始值的±20% |
||
|
損失(shi)角正切值 |
≤初始規格值的200% |
||
|
漏電(dian)流 |
≤初始規(gui)格值 |
||
|
高溫(wen)無負荷(he)特性 |
在85℃環境下，無負荷放置500小時后待溫度恢復到20℃，進行試驗前處理（JIS C 5101-4 4.1項） |
||
|
靜電容量變化率 |
≤初始值的±20% |
||
|
損失角正切值 |
≤初始規(gui)格值的200% |
||
|
漏電流(liu) |
≤初始規格值(zhi) |
||

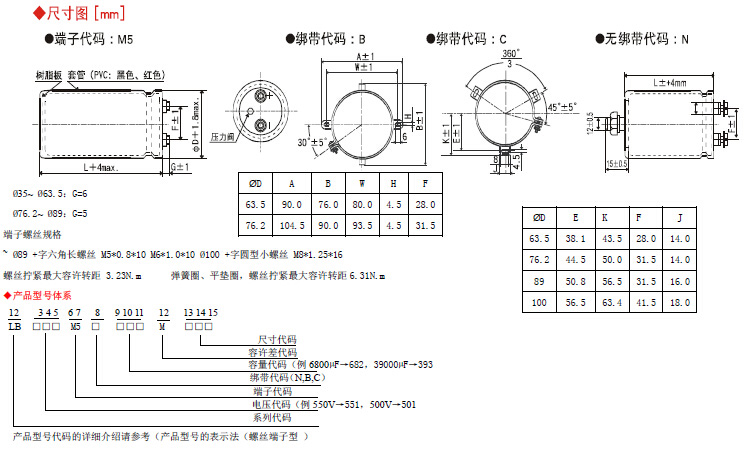

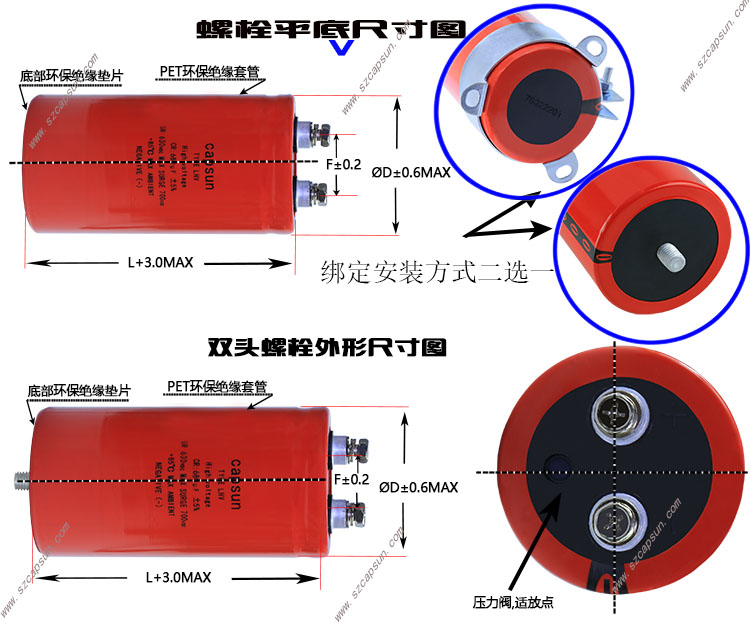

標準品(pin)一覽表
|
工(gong)作電壓(ya) |
額定容量 |
外殼(ke)尺(chi)寸D x L |
損(sun)耗角120Hz,20℃ |
額定紋(wen)波電(dian)流 |
產品型號 |
|
[V] |
[μF] |
[mm] |
tanδ |
（Ams/85℃,120Hz） |
|
| 350 | 1500 |
50*65 |
0.25 |
5.09 |
LG351M5C152MC65 |
|
1800 |
50*75 |
0.25 |
5.93 |
LG351M5C182MC75 |
|
|
2200 |
50*96 |
0.25 |
7.3 |
LG351M5C222MC96 |
|
|
2700 |
50*115 |
0.25 |
8.76 |
LG351M5C272MCB5 |
|
|
3300 |
63.5*85 |
0.25 |
9.71 |
LG351M5C332MD85 |
|
|
3900 |
50*130 |
0.25 |
11.1 |
LG351M5C392MCD0 |
|
|
3900 |
63.5*96 |
0.25 |
11.1 |
LG351M5C392MD96 |
|
|
4700 |
63.5*115 |
0.25 |
13.2 |
LG351M5C472MDB5 |
|
|
5600 |
63.5*130 |
0.25 |
15.2 |
LG351M5C562MDD0 |
|
|
5600 |
76.2*96 |
0.25 |
14.3 |
LG351M5C562ME96 |
|
|
6800 |
76.2*115 |
0.25 |
17 |
LG351M5C682MEB5 |
|
|
8200 |
76.2*130 |
0.25 |
19.6 |
LG351M5C822MED0 |
|
|
10000 |
76.2*155 |
0.25 |
23.4 |
LG351M5C103MEF5 |
|
|
12000 |
89*130 |
0.25 |
24.1 |
LG351M5C123MFD0 |
|
|
15000 |
89*155 |
0.25 |
29.1 |
LG351M5C153MFF5 |
|
| 400 | 1200 |
50*65 |
0.25 |
4.55 |
LG401M5C122MC65 |
|
1500 |
50*75 |
0.25 |
5.41 |
LG401M5C152MC75 |
|
|
1800 |
50*85 |
0.25 |
6.26 |
LG401M5C182MC85 |
|
|
2200 |
50*96 |
0.25 |
7.3 |
LG401M5C222MC96 |
|
|
2700 |
50*115 |
0.25 |
8.76 |
LG401M5C272MCB5 |
|
|
3300 |
63.5*96 |
0.25 |
10.2 |
LG401M5C332MD96 |
|
|
3900 |
63.5*115 |
0.25 |
12 |
LG401M5C392MDB5 |
|
|
4700 |
63.5*130 |
0.25 |
13.9 |
LG401M5C472MDD0 |
|
|
4700 |
76.2*96 |
0.25 |
13.1 |
LG401M5C472ME96 |
|
|
5600 |
63.5*155 |
0.25 |
16.5 |
LG401M5C562MDF5 |
|
|
6800 |
76.2*115 |
0.25 |
17 |
LG401M5C682MEB5 |
|
|
8200 |
76.2*155 |
0.25 |
21.2 |
LG401M5C822MEF5 |
|
|
10000 |
89*130 |
0.25 |
22 |
LG401M5C103MFD0 |
|
|
12000 |
89*155 |
0.25 |
26 |
LG401M5C123MFF5 |
|
| 450 | 1000 |
50*70 |
0.25 |
3.87 |
LG451M5C102MC70 |
|
1200 |
50*75 |
0.25 |
4.36 |
LG451M5C122MC75 |
|
|
1500 |
50*90 |
0.25 |
5.28 |
LG451M5C152MC90 |
|
|
1800 |
50*96 |
0.25 |
5.95 |
LG451M5C182MC96 |
|
|
2200 |
50*130 |
0.25 |
7.54 |
LG451M5C222MCD0 |
|
|
2700 |
63.5*96 |
0.25 |
8.34 |
LG451M5C272MD96 |
|
|
3300 |
63.5*115 |
0.25 |
9.97 |
LG451M5C332MDB5 |
|
| 450 |
3900 |
63.5*130 |
0.25 |
11.4 |
LG451M5C392MDD0 |
|
3900 |
76.2*96 |
0.25 |
11.1 |
LG451M5C392ME96 |
|
|
4700 |
63.5*155 |
0.25 |
13.6 |
LG451M5C472MDF5 |
|
|
4700 |
76.2*115 |
0.25 |
13.2 |
LG451M5C472MEB5 |
|
|
5600 |
76.2*130 |
0.25 |
15.2 |
LG451M5C562MED0 |
|
|
6800 |
76.2*155 |
0.25 |
18.1 |
LG451M5C682MEF5 |
|
|
8200 |
89*130 |
0.25 |
19.2 |
LG451M5C822MFD0 |
|
| 500 |
470 |
50*60 |
0.25 |
2.17 |
LG501M5C471MC60 |
|
680 |
50*65 |
0.25 |
2.7 |
LG501M5C681MC65 |
|
|
820 |
50*75 |
0.25 |
3.15 |
LG501M5C821MC75 |
|
|
1000 |
50*85 |
0.25 |
3.67 |
LG501M5C102MC85 |
|
|
1200 |
50*96 |
0.25 |
4.22 |
LG501M5C122MC96 |
|
|
1500 |
50*115 |
0.25 |
5.14 |
LG501M5C152MCB5 |
|
|
1500 |
63.5*96 |
0.25 |
5.42 |
LG501M5C152MD96 |
|
|
1800 |
50*130 |
0.25 |
5.95 |
LG501M5C182MCD0 |
|
|
1800 |
63.5*96 |
0.25 |
5.94 |
LG501M5C182MD96 |
|
|
2200 |
63.5*115 |
0.25 |
7.1 |
LG501M5C222ME96 |
|
|
2200 |
76.2*96 |
0.25 |
7.3 |
LG501M5C222ME96 |
|
|
2700 |
63.5*130 |
0.25 |
8.31 |
LG501M5C272MDD0 |
|
|
3300 |
76.2*115 |
0.25 |
9.65 |
LG501M5C332MEB5 |
|
|
3900 |
76.2*130 |
0.25 |
11.1 |
LG501M5C392MED0 |
|
|
4700 |
76.2*155 |
0.25 |
13.1 |
LG501M5C472MEF5 |
|
|
6800 |
89*155 |
0.25 |
15.9 |
LG501M5C682MFF5 |
|
| 550 |
390 |
50*60 |
0.25 |
1.98 |
LG551M5C391MC60 |
|
560 |
50*65 |
0.25 |
2.45 |
LG551M5C561MC65 |
|
|
680 |
50*75 |
0.25 |
2.87 |
LG551M5C681MC75 |
|
|
820 |
50*85 |
0.25 |
3.32 |
LG551M5C821MC85 |
|
|
1200 |
50*115 |
0.25 |
4.6 |
LG551M5C122MCB5 |
|
|
1500 |
63.5*96 |
0.25 |
5.42 |
LG551M5C152MD96 |
|
|
1800 |
76.2*80 |
0.25 |
6.12 |
LG551M5C182ME80 |
|
|
2200 |
76.2*96 |
0.25 |
7.3 |
LG551M5C222ME96 |
|
|
2700 |
76.2*115 |
0.25 |
8.73 |
LG551M5C272MEB5 |
|
|
3300 |
76.2*130 |
0.25 |
10.2 |
LG551M5C332MED0 |
|
|
5600 |
89*155 |
0.25 |
14.5 |
LG551M5C562MFF5 |
◆ 額(e)定紋波電流(liu)頻(pin)率(lv)修正(zheng)系數
紋波頻率與標(biao)準品一覽表的規定(ding)值(zhi)相(xiang)異時，請使用小于(yu)乘(cheng)以(yi)下表系(xi)數所得之值(zhi)的值(zhi)。
● 頻率(lv)修正(zheng)系(xi)數(shu)
|
頻率（HZ） |
50 |
120 |
300 |
1K |
3K |
|
修正系(xi)數(shu) |
0.8 |
1.0 |
1.1 |
1.3 |
1.4 |

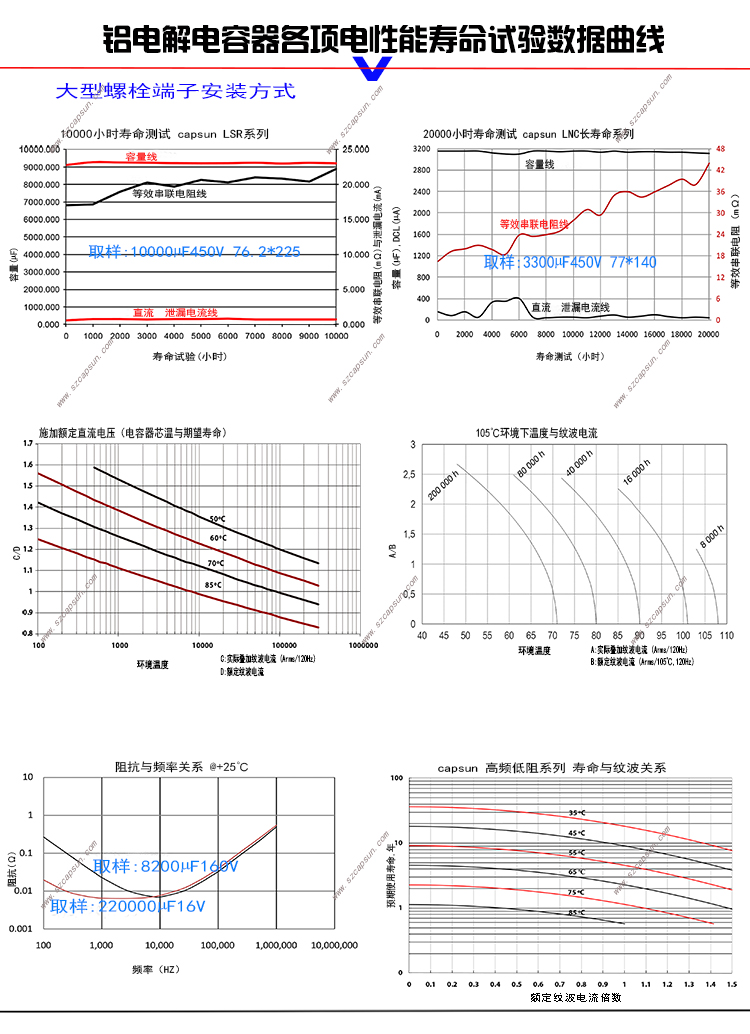

※ 鋁電解電容器由于在紋波電流疊加時自我發熱、溫度上升而老化，第升溫5～10℃壽命減少一半。
要想保持長(chang)(chang)壽命(ming)請(qing)在使用過程中(zhong)降低紋波(bo)電(dian)(dian)流(liu)。此外(wai)，額(e)(e)定電(dian)(dian)壓(ya)的(de)80%以上(shang)到額(e)(e)定電(dian)(dian)壓(ya)范圍內可(ke)通過降低電(dian)(dian)壓(ya)延(yan)長(chang)(chang)壽命(ming)。
