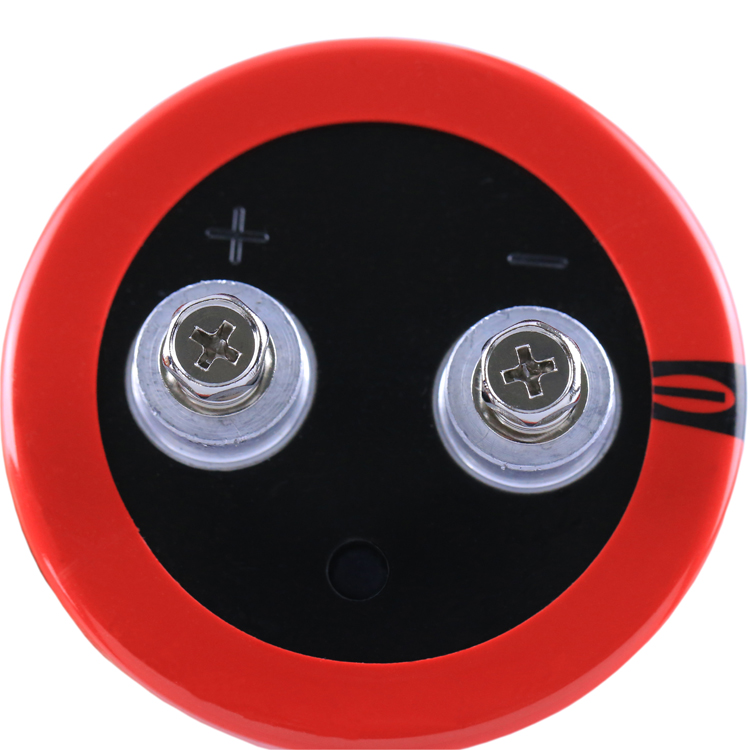

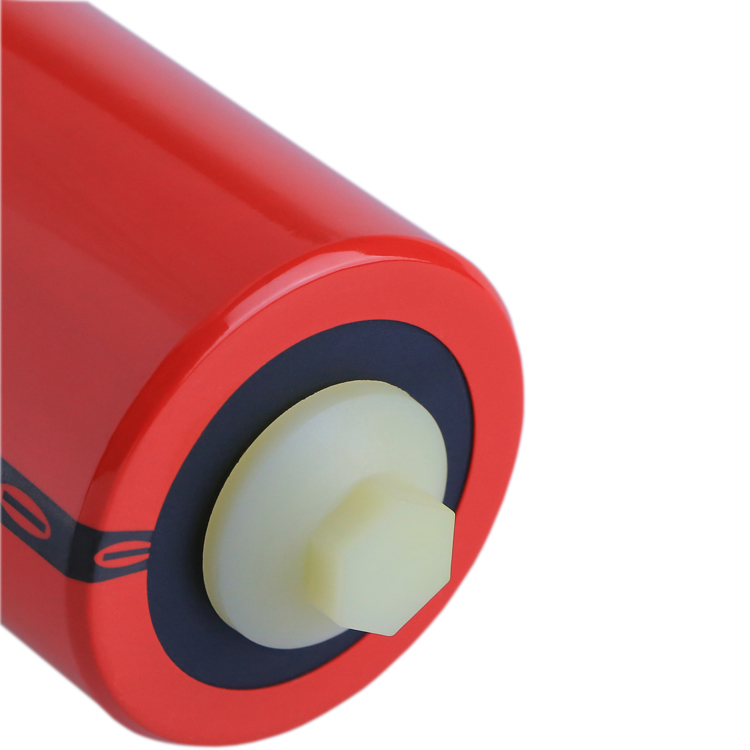

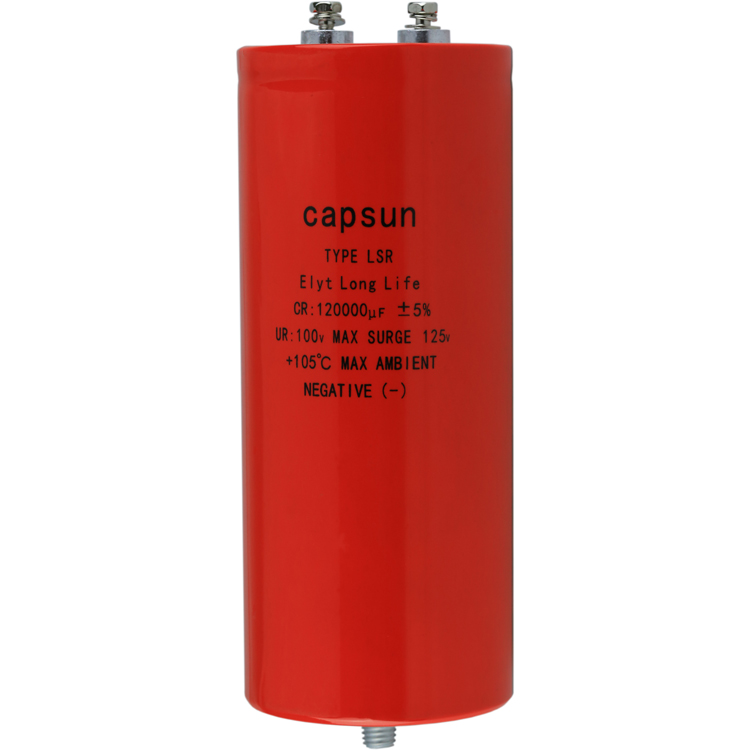

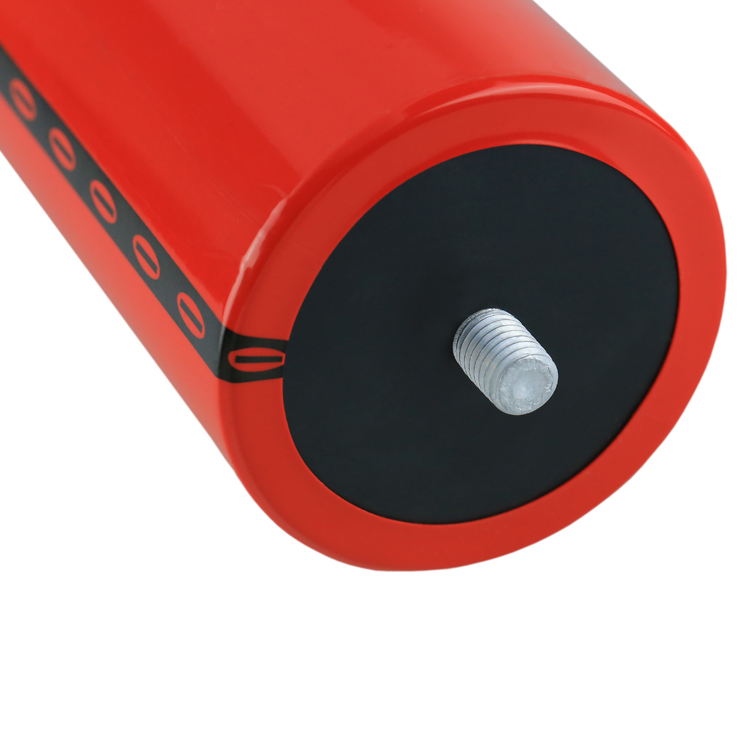

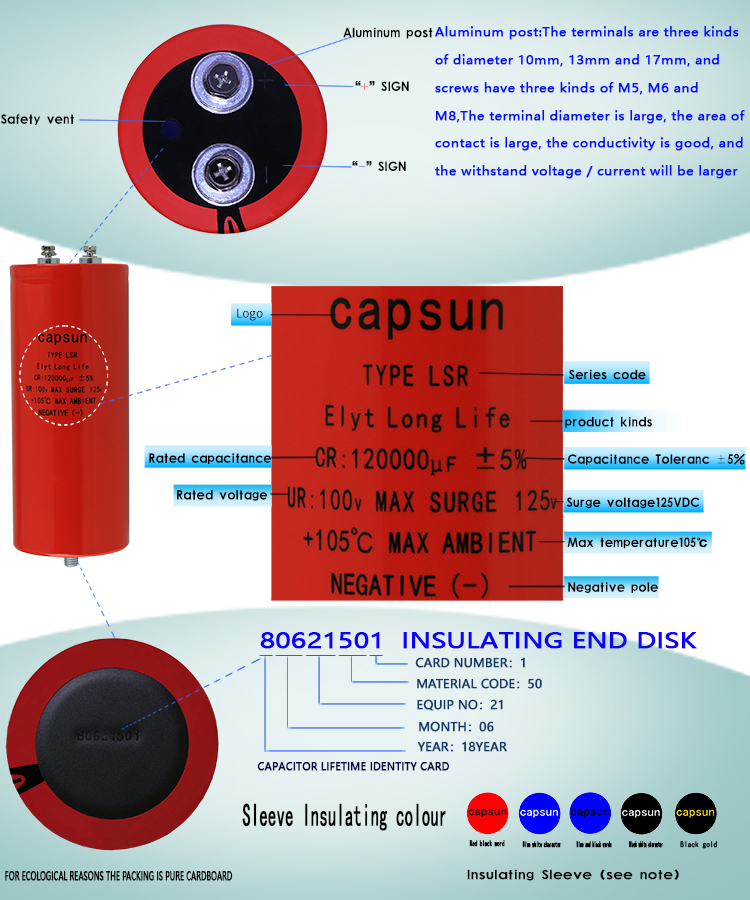

| items | characteristics | |||||||||||||||||||||||||||||||||||
| Category temperature Range | -40～+105℃（16-450VDC） | |||||||||||||||||||||||||||||||||||
| Rated voltage Range | 16～500VDC | |||||||||||||||||||||||||||||||||||
| Capacitance Tolerance | ± 20%（M） 20℃/120HZ | |||||||||||||||||||||||||||||||||||
| Leakage Current |
I=0.01CV or 5mA,whichever is smaller I: Where, I : Max. leakage current（µA）、C: Nominal capacitance（µF）、Rated voltage (V)at 20℃after 5 minutes) |
|||||||||||||||||||||||||||||||||||
| Dissipation Factor（tanδ） |
|
|||||||||||||||||||||||||||||||||||
| Max.reverse voltage / ESL | 2 V / 20 nH | |||||||||||||||||||||||||||||||||||
| Low Temperature characteristics | Capacitance change C（-25℃）/C（+20℃）≥0.7 20℃/120HZ | |||||||||||||||||||||||||||||||||||
| Insulation Resistance | When measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case by using an insulation resistance meter of 500Vdc, the insulation resistance shall not be less than 100mΩ | |||||||||||||||||||||||||||||||||||
| Insulation Withstanding Voltage | When a voltage of 2,000Vac is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case, there shall not be electrical damage.。 | |||||||||||||||||||||||||||||||||||
| Endurance | The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 12,000 hours at 105℃。 | |||||||||||||||||||||||||||||||||||
| Capacitance change | ≤±20% of the initial value | |||||||||||||||||||||||||||||||||||
| D.F. (tanδ) | ≤200% of the initial specified value | |||||||||||||||||||||||||||||||||||
| Leakage current | ≤The initial specified value | |||||||||||||||||||||||||||||||||||
|
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 85℃ without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4 | |||||||||||||||||||||||||||||||||||
| Capacitance change | ≤±20% of the initial value | |||||||||||||||||||||||||||||||||||
| D.F. (tanδ) | ≤150% of the initial specified value | |||||||||||||||||||||||||||||||||||
| Leakage current | ≤The initial specified value | |||||||||||||||||||||||||||||||||||
|
WV |
cap [μF] |

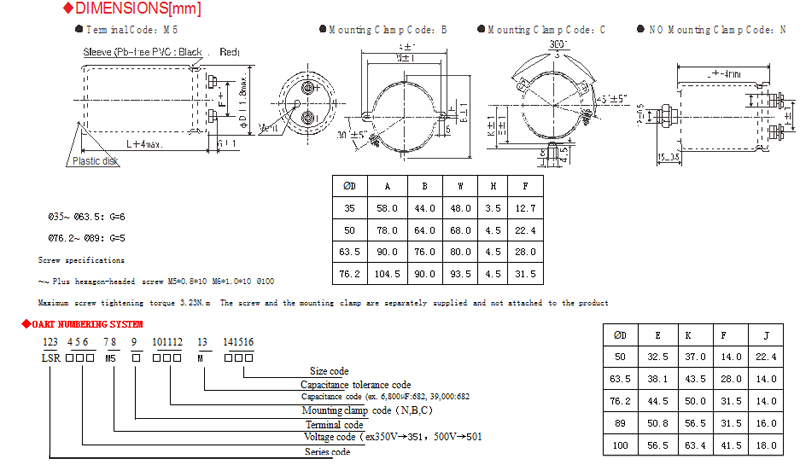

Case size ØD x L [mm] |
ESR 120Hz,20℃ [mΩ] |
Ripple current （Ams/105℃,120Hz） |
Par t NO.
|
|
[Vdc] |
|||||
| 16v |
82000 |
35*55 |
6 |
9 |
LSR160M5B823KA55 |
|
120000 |
35*70 |
4 |
12 |
LSR160M5B124KA70 |
|
|
120000 |
42*50 |
4 |
11.1 |
LSR160M5B124KV50 |
|
|
150000 |
35*80 |
4 |
14.2 |
LSR160M5B154KA80 |
|
|
150000 |
42*60 |
3 |
13.7 |
LSR160M5B154KV60 |
|
|
180000 |
35*100 |
3 |
17 |
LSR160M5B184KAA0 |
|
|
180000 |
42*70 |
3 |
15.8 |
LSR160M5B184KV70 |
|
|
180000 |
42*80 |
3 |
15 |
LSR160M5B184KV80 |
|
|
220000 |
42*90 |
2 |
19.1 |
LSR160M5B224KV90 |
|
|
220000 |
50*70 |
2 |
17.7 |
LSR160M5B224KC70 |
|
|
270000 |
42*105 |
2 |
21.1 |
LSR160M5B274KVA5 |
|
|
270000 |
50*80 |
2 |
20.6 |
LSR160M5B274KC80 |
|
|
390000 |
50*100 |
1 |
27 |
LSR160M5B394KCA0 |
|
|
470000 |
65*80 |
1 |
35.6 |
LSR160M6C474KD80 |
|
|
560000 |
65*100 |
1 |
42.1 |
LSR160M6C564KDA0 |
|
|
820000 |
65*130 |
1 |
56.5 |
LSR160M6C824KDD0 |
|
|
820000 |
76*100 |
1 |
44.1 |
LSR160M6C824KEA0 |
|
|
1000000 |
76*115 |
1 |
46.5 |
LSR160M6CA5KEB5 |
|
|
1200000 |
76*145 |
1 |
50.8 |
LSR160M6CC5KEE5 |
|
|
1500000 |
76*170 |
1 |
53.5 |
LSR160M6C155KE70 |
|
|
1800000 |
89*145 |
1 |
57.3 |
LSR160M6C185KFE5 |
|
|
2200000 |
76*225 |
1 |
61 |
LSR160M6C225KEN0 |
|
|
2200000 |
89*170 |
1 |
60.4 |
LSR160M6C225KFH0 |
|
|
2700000 |
89*220 |
1 |
67.1 |
LSR160M6C275KFN0 |
|
|
3300000 |
89*230 |
1 |
68.3 |
LSR160M6C335KFM0 |
|
|
25v |
33000 |
35*55 |
14 |
5.9 |
LSR250M5B333KA55 |
|
47000 |
35*70 |
9 |
7.8 |
LSR250M5B473KA70 |
|
|
47000 |
42*50 |
9 |
7.2 |
LSR250M5B473KV50 |
|
|
56000 |
35*80 |
8 |
9 |
LSR250M5B563KA80 |
|
|
68000 |
42*60 |
7 |
9.5 |
LSR250M5B683KV60 |
|
|
68000 |
35*100 |
5 |
11.9 |
LSR250M5B683KAA0 |
|
|
68000 |
42*70 |
7 |
10 |
LSR250M5B683KV70 |
|
|
82000 |
42*80 |
5 |
10.5 |
LSR250M5B823KV80 |
|
|
82000 |
42*90 |
7 |
11 |
LSR250M5B823KV90 |
|
|
100000 |
50*70 |
4 |
12.3 |
LSR250M5B104KC70 |
|
|
120000 |
42*105 |
4 |
14.6 |
LSR250M5B124KVA5 |
|
|
120000 |
50*80 |
4 |
14.2 |
LSR250M5B124KC80 |
|
|
150000 |
50*100 |
3 |
17.3 |
LSR250M5B154KCA0 |
|
|
180000 |
65*80 |
3 |
22.4 |
LSR250M6C184KD80 |
|
|
270000 |
65*100 |
2 |
29.8 |
LSR250M6C274KDA0 |
|
|
330000 |
76*100 |
1 |
28.5 |
LSR250M6C334KEA0 |
|
| 330000 | 65*130 | 1 | 36.4 | LSR250M6C334KDD0 | |
| 390000 | 65*130 | 1 | 32.6 | LSR250M6C394KDD0 | |
| 560000 | 76*145 | 1 | 42.7 | LSR250M6C564KEE5 | |
| 560000 | 76*170 | 1 | 45 | LSR250M6C564KE70 | |
| 820000 | 89*145 | 1 | 58.2 | LSR250M6C824KFE5 | |
| 820000 | 89*145 | 1 | 62 | LSR250M6C824KFE5 | |
| 820000 | 89*170 | 1 | 61.5 | LSR250M6C824KFH0 | |
| 1200000 | 89*220 | 1 | 82.6 | LSR250M6CC5KFN0 | |
| 1500000 | 89*230 | 1 | 94 | LSR250M6C155KFM0 | |
| 35/40V | 18000 | 35*55 | 21 | 4.7 | LSR400M5B183KA55 |
| 22000 | 42*50 | 17 | 5.3 | LSR400M5B223KV50 | |
| 27000 | 35*70 | 14 | 6.4 | LSR400M5B273KA70 | |
| 33000 | 35*80 | 12 | 6.4 | LSR400M5B333KA80 | |
| 33000 | 42*60 | 12 | 7.2 | LSR400M5B333KV60 | |
| 39000 | 35*100 | 10 | 8.9 | LSR400M5B393KAA0 | |
| 39000 | 42*70 | 10 | 8.2 | LSR400M5B393KV70 | |
| 39000 | 42*80 | 10 | 7.8 | LSR400M5B393KV80 | |
| 56000 | 50*70 | 7 | 10 | LSR400M5B563KC70 | |
| 56000 | 42*90 | 7 | 10.8 | LSR400M5B563KV90 | |
| 68000 | 50*80 | 6 | 11.6 | LSR400M5B683KC80 | |
| 68000 | 42*105 | 6 | 11.8 | LSR400M5B683KVA5 | |
| 82000 | 50*100 | 5 | 13.8 | LSR400M5B823KCA0 | |
| 100000 | 65*80 | 4 | 18.3 | LSR400M6C104KD80 | |
| 150000 | 65*100 | 3 | 24.4 | LSR400M6C154KDA0 | |
| 180000 | 76*100 | 2 | 23.1 | LSR400M6C184KEA0 | |
| 180000 | 65*130 | 2 | 29.6 | LSR400M6C184KDD0 | |
| 220000 | 76*115 | 2 | 26.9 | LSR400M6C224KEB5 | |
| 270000 | 76*145 | 1 | 32.6 | LSR400M6C274KEE5 | |
| 330000 | 76*170 | 1 | 38 | LSR400M6C334KE70 | |
| 470000 | 89*145 | 1 | 48.5 | LSR400M6C474KFE5 | |
| 470000 | 76*225 | 1 | 51.6 | LSR400M6C474KEN0 | |
| 560000 | 89*170 | 1 | 55.8 | LSR400M6C564KFH0 | |
| 680000 | 89*220 | 1 | 68.3 | LSR400M6C684KFN0 | |
| 680000 | 89*230 | 1 | 69.6 | LSR400M6C684KFM0 | |
| 50v | 6800 | 35*50 | 38 | 2.5 | LSR500M5B682KA50 |
| 8200 | 35*50 | 33 | 2.8 | LSR500M5B822KA50 | |
| 10000 | 42*40 | 22 | 3.1 | LSR500M5B103KV40 | |
| 15000 | 42*50 | 18 | 3.3 | LSR500M5B153KV50 | |
| 15000 | 35*60 | 16 | 3.4 | LSR500M5B153KA60 | |
| 18000 | 42*60 | 14 | 6.1 | LSR500M5B183KV60 | |
| 22000 | 42*70 | 10 | 6.5 | LSR500M5B223KV70 | |
|
27000 |
50*70 |
8 |
8 |
LSR500M5B273KC70 |
|
|
33000 |
42*100 |
7 |
7 |
LSR500M5B333KVA0 |
|
|
39000 |
50*90 |
7 |
10 |
LSR500M5B393KC90 |
|
|
47000 |
65*70 |
4 |
13.1 |
LSR500M6C473KD70 |
|
|
68000 |
65*85 |
4 |
16.5 |
LSR500M6C683KD85 |
|
|
82000 |
76*90 |
3 |
17.1 |
LSR500M6C823KE90 |
|
|
100000 |
65*120 |
3 |
22.1 |
LSR500M6C104KDC0 |
|
|
120000 |
76*115 |
2 |
20.3 |
LSR500M6C124KEB5 |
|
|
150000 |
76*130 |
2 |
24.6 |
LSR500M6C154KED0 |
|
|
180000 |
76*150 |
2 |
28.6 |
LSR500M6C184KEF5 |
|
|
220000 |
89*140 |
1 |
35.1 |
LSR500M6C224KFE0 |
|
|
270000 |
76*220 |
1 |
38.8 |
LSR500M6C274KEN0 |
|
|
330000 |
89*200 |
1 |
48.6 |
LSR500M6C334KFO0 |
|
|
390000 |
89*210 |
1 |
51.6 |
LSR500M6C394KFP0 |
|
|
470000 |
89*230 |
1 |
56.5 |
LSR500M6C474KFM0 |
|
| 63v |
8200 |
35*55 |
35 |
3.7 |
LSR630M5B822KA55 |
|
12000 |
42*50 |
24 |
4.6 |
LSR630M5B123KV50 |
|
|
15000 |
35*70 |
19 |
5.5 |
LSR630M5B153KA70 |
|
|
18000 |
35*80 |
16 |
6.3 |
LSR630M5B183KA80 |
|
|
18000 |
42*60 |
16 |
6.1 |
LSR630M5B183KV60 |
|
|
18000 |
35*100 |
16 |
6.9 |
LSR630M5B183KAA0 |
|
|
22000 |
42*70 |
13 |
7.1 |
LSR630M5B223KV70 |
|
|
22000 |
42*80 |
13 |
6.8 |
LSR630M5B223KV80 |
|
|
27000 |
50*70 |
11 |
8 |
LSR630M5B273KC70 |
|
|
27000 |
42*105 |
11 |
8.6 |
LSR630M5B273KVA5 |
|
|
33000 |
50*80 |
9 |
9.3 |
LSR630M5B333KC80 |
|
|
33000 |
42*105 |
9 |
9.5 |
LSR630M5B333KVA5 |
|
|
39000 |
50*100 |
7 |
11 |
LSR630M5B393KCA0 |
|
|
47000 |
65*80 |
6 |
14.5 |
LSR630M6C473KD80 |
|
|
68000 |
65*100 |
4 |
19 |
LSR630M6C683KDA0 |
|
|
82000 |
76*100 |
3 |
18 |
LSR630M6C823KEA0 |
|
|
100000 |
65*130 |
3 |
25.5 |
LSR630M6C104KDD0 |
|
|
120000 |
76*115 |
2 |
22.9 |
LSR630M6C124KEB5 |
|
|
150000 |
76*145 |
2 |
28.1 |
LSR630M6C154KEE5 |
|
|
180000 |
76*170 |
2 |
32.4 |
LSR630M6C184KE70 |
|
|
220000 |
89*145 |
1 |
38.3 |
LSR630M6C224KFE5 |
|
|
220000 |
76*225 |
1 |
40.8 |
LSR630M6C224KEN0 |
|
|
270000 |
89*170 |
1 |
44.8 |
LSR630M6C274KFH0 |
|
|
330000 |
89*220 |
1 |
54.9 |
LSR630M6C334KFN0 |
|
|
390000 |
89*230 |
1 |
60.9 |
LSR630M6C394KFM0 |
|
| 80v |
6800 |
35*55 |
47 |
3.2 |
LSR800M5B682KA55 |
|
8200 |
42*50 |
39 |
3.8 |
LSR800M5B822KV50 |
|
|
10000 |
35*70 |
32 |
4.2 |
LSR800M5B103KA70 |
|
|
12000 |
35*80 |
27 |
4.6 |
LSR800M5B123KA80 |
|
|
12000 |
42*60 |
27 |
4.7 |
LSR800M5B123KV60 |
|
|
15000 |
35*100 |
21 |
6 |
LSR800M5B153KAA0 |
|
|
15000 |
42*70 |
21 |
5.6 |
LSR800M5B153KV70 |
|
|
15000 |
42*80 |
21 |
5.3 |
LSR800M5B153KV80 |
|
| 18000 | 42*90 | 18 | 6.2 | LSR800M5B183KV90 | |
| 18000 | 50*70 | 18 | 6.2 | LSR800M5B183KC70 | |
| 22000 | 42*105 | 14 | 7.9 | LSR800M5B223KVA5 | |
| 22000 | 50*80 | 14 | 7.2 | LSR800M5B223KC80 | |
| 27000 | 50*100 | 12 | 8.7 | LSR800M5B273KCA0 | |
| 39000 | 65*80 | 8 | 12.6 | LSR800M6C393KD80 | |
| 47000 | 65*100 | 7 | 15 | LSR800M6C473KDA0 | |
| 68000 | 65*130 | 5 | 15.7 | LSR800M6C683KDD0 | |
| 68000 | 76*100 | 5 | 19.7 | LSR800M6C683KEA0 | |
| 82000 | 76*115 | 4 | 18 | LSR800M6C823KEB5 | |
| 100000 | 76*145 | 3 | 21.7 | LSR800M6C104KEE5 | |
| 120000 | 76*170 | 3 | 25.1 | LSR800M6C124KE70 | |
| 150000 | 89*145 | 2 | 30 | LSR800M6C154KFE5 | |
| 180000 | 76*2225 | 2 | 35 | LSR800M6C184KEN0 | |
| 180000 | 89*170 | 2 | 34.3 | LSR800M6C184KFH0 | |
| 220000 | 89*220 | 1 | 42.6 | LSR800M6C224KFN0 | |
| 270000 | 89*230 | 1 | 48 | LSR800M6C274KFM0 | |
| 100V | 3300 | 35*55 | 48 | 3.1 | LSR101M5B332KA55 |
| 4700 | 35*70 | 34 | 4.1 | LSR101M5B472KA70 | |
| 4700 | 42*55 | 34 | 3.8 | LSR101M5B472KV55 | |
| 5600 | 35*80 | 28 | 4.7 | LSR101M5B562KA80 | |
| 5600 | 42*70 | 28 | 4.6 | LSR101M5B562KV70 | |
| 6800 | 35*70 | 23 | 5.7 | LSR101M5B682KAA0 | |
| 6800 | 42*70 | 23 | 5.3 | LSR101M5B682KV70 | |
| 8200 | 42*80 | 19 | 5.5 | LSR101M5B822KV80 | |
| 10000 | 50*70 | 16 | 6.5 | LSR101M5B103KC70 | |
| 10000 | 42*105 | 16 | 7.1 | LSR101M5B103KVA5 | |
| 12000 | 42*120 | 13 | 7.7 | LSR101M5B123KVC0 | |
| 12000 | 50*80 | 13 | 7.5 | LSR101M5B123KC80 | |
| 15000 | 50*100 | 11 | 9.2 | LSR101M5B153KCA0 | |
| 18000 | 65*80 | 9 | 12.1 | LSR101M6C183KD80 | |
| 22000 | 65*100 | 7 | 14.5 | LSR101M6C223KDA0 | |
| 27000 | 76*100 | 6 | 13.9 | LSR101M6C273KEA0 | |
| 33000 | 65*130 | 5 | 19.6 | LSR101M6C333KDD0 | |
| 39000 | 76*145 | 4 | 17.6 | LSR101M6C393KEB5 | |
| 47000 | 76*145 | 3 | 21.1 | LSR101M6C473KEE5 | |
| 56000 | 76*170 | 3 | 24.2 | LSR101M6C563KE70 | |
| 68000 | 89*145 | 2 | 28.6 | LSR101M6C683KFE5 | |
| 82000 | 76*225 | 2 | 33.4 | LSR101M6C823KEN0 | |
| 82000 | 89*170 | 2 | 33.1 | LSR101M6C823KFH0 | |
| 120000 | 89*220 | 1 | 44.5 | LSR101M6C124KFN0 | |
| 120000 | 89*230 | 1 | 45.3 | LSR101M6C124KFM0 | |
| 160v | 1800 | 35*55 | 62 | 2.8 | LSR161M5B182KA55 |
| 2200 | 35*70 | 51 | 3.4 | LSR161M5B222KA70 | |
| 2200 | 42*55 | 51 | 3.1 | LSR161M5B222KV55 | |
| 2700 | 35*80 | 41 | 3.9 | LSR161M5B272KA80 | |
| 3300 | 42*70 | 34 | 4.2 | LSR161M5B332KV70 | |
| 3900 | 35*100 | 29 | 5.2 | LSR161M5B392KAA0 | |
|
3900 |
42*80 |
29 |
4.6 |
LSR161M5B392KV80 |
|
|
4700 |
42*100 |
24 |
5.4 |
LSR161M5B472KVA0 |
|
|
4700 |
50*70 |
24 |
5.7 |
LSR161M5B472KC70 |
|
|
5600 |
50*80 |
20 |
6.1 |
LSR161M5B562KC80 |
|
|
6800 |
42*105 |
16 |
6.9 |
LSR161M5B682KVA5 |
|
|
8200 |
50*100 |
14 |
8.1 |
LSR161M5B822KCA0 |
|
|
8200 |
65*80 |
14 |
9.7 |
LSR161M6C822KD80 |
|
|
12000 |
65*100 |
9 |
12.8 |
LSR161M6C123KDA0 |
|
|
18000 |
65*130 |
6 |
13.7 |
LSR161M6C183KDD0 |
|
|
18000 |
76*100 |
6 |
17.1 |
LSR161M6C183KEA0 |
|
|
18000 |
76*115 |
6 |
14.3 |
LSR161M6C183KEB5 |
|
|
27000 |
76*145 |
4 |
19.1 |
LSR161M6C273KEE5 |
|
|
27000 |
76*170 |
4 |
20.1 |
LSR161M6C273KE70 |
|
|
39000 |
89*145 |
3 |
25.9 |
LSR161M6C393KFE5 |
|
|
47000 |
76*225 |
2 |
30.2 |
LSR161M6C473KEN0 |
|
|
47000 |
89*170 |
2 |
30 |
LSR161M6C473KFH0 |
|
|
56000 |
89*220 |
2 |
36.3 |
LSR161M6C563KFN0 |
|
|
68000 |
89*230 |
2 |
40.7 |
LSR161M6C683KFM0 |
|
| 200v |
1500 |
35*50 |
63 |
2.8 |
LSR201M5B152KA50 |
|
1800 |
35*70 |
52 |
2.6 |
LSR201M5B182KA70 |
|
|
2200 |
42*70 |
41 |
3.1 |
LSR201M5B222KV70 |
|
|
2700 |
42*70 |
33 |
4.1 |
LSR201M5B272KV70 |
|
|
3300 |
42*100 |
27 |
4.5 |
LSR201M5B332KVA0 |
|
|
3900 |
50*60 |
28 |
5 |
LSR201M5B392KC60 |
|
|
4700 |
50*80 |
14 |
5.2 |
LSR201M5B472KC80 |
|
|
5600 |
50*90 |
16 |
7 |
LSR201M5B562KC90 |
|
|
6800 |
65*70 |
16 |
8.2 |
LSR201M6C682KD70 |
|
|
8200 |
65*90 |
11 |
10.3 |
LSR201M6C822KD90 |
|
|
10000 |
65*105 |
10 |
11.1 |
LSR201M6C103KDA5 |
|
|
12000 |
65*120 |
7 |
11.6 |
LSR201M6C123KDC0 |
|
|
15000 |
76*105 |
5 |
12.6 |
LSR201M6C153KEA5 |
|
|
18000 |
76*130 |
4 |
14.2 |
LSR201M6C183KED0 |
|
|
22000 |
76*145 |
4 |
19.3 |
LSR201M6C223KEE5 |
|
|
27000 |
76*190 |
3 |
21.6 |
LSR201M6C273KEK0 |
|
|
39000 |
89*200 |
2 |
26.3 |
LSR201M6C393KFO0 |
|
|
47000 |
89*230 |
1 |
28.8 |
LSR201M6C473KFM0 |
|
| 250v |
1200 |
35*55 |
80 |
2.4 |
LSR251M5B122KA55 |
|
1500 |
35*70 |
64 |
3 |
LSR251M5B152KA70 |
|
|
1500 |
42*55 |
64 |
2.8 |
LSR251M5B152KV55 |
|
|
1800 |
35*80 |
53 |
3.5 |
LSR251M5B182KA80 |
|
|
1800 |
42*70 |
53 |
3.3 |
LSR251M5B182KV70 |
|
|
2200 |
42*80 |
43 |
4.1 |
LSR251M5B222KV80 |
|
|
2700 |
35*100 |
35 |
4.4 |
LSR251M5B272KAA0 |
|
|
2700 |
42*80 |
35 |
4.1 |
LSR251M5B272KV80 |
|
|
3300 |
42*90 |
29 |
4.9 |
LSR251M5B332KV90 |
|
|
3300 |
50*70 |
29 |
5.2 |
LSR251M5B332KC70 |
|
|
3900 |
50*80 |
24 |
5.5 |
LSR251M5B392KC80 |
|
|
3900 |
42*105 |
24 |
5.7 |
LSR251M5B392KVA5 |
|
| 5600 | 50*100 | 17 | 5.7 | LSR251M5B562KCA0 | |
| 5600 | 65*80 | 17 | 7.2 | LSR251M6C562KD80 | |
| 8200 | 65*100 | 12 | 8.7 | LSR251M6C822KDA0 | |
| 10000 | 65*120 | 12 | 11.4 | LSR251M6C103KDC0 | |
| 12000 | 76*100 | 8 | 12.1 | LSR251M6C123KEA0 | |
| 15000 | 76*115 | 6 | 14.1 | LSR251M6C153KEB5 | |
| 18000 | 76*115 | 6 | 14.1 | LSR251M6C183KEB5 | |
| 18000 | 76*145 | 5 | 16.8 | LSR251M6C183KEE5 | |
| 27000 | 76*170 | 5 | 17.7 | LSR251M6C273KE70 | |
| 27000 | 89*145 | 4 | 23.2 | LSR251M6C273KFE5 | |
| 33000 | 76*225 | 4 | 24.5 | LSR251M6C333KEN0 | |
| 39000 | 89*220 | 2 | 32.7 | LSR251M6C393KFN0 | |
| 39000 | 89*230 | 2 | 33.3 | LSR251M6C393KFM0 | |
| 350V | 680 | 35*88 | 141 | 1.8 | LSR351M5B680KA55 |
| 1000 | 35*70 | 96 | 2.3 | LSR351M5B102KA70 | |
| 1200 | 42*55 | 80 | 2.8 | LSR351M5B122KV55 | |
| 1200 | 35*80 | 80 | 2.7 | LSR351M5B122KA80 | |
| 1500 | 35*100 | 64 | 3 | LSR351M5B152KAA0 | |
| 1500 | 42*80 | 64 | 3.4 | LSR351M5B152KV80 | |
| 1800 | 42*90 | 53 | 3.6 | LSR351M5B182KV90 | |
| 1800 | 50*70 | 53 | 3.8 | LSR351M5B182KC70 | |
| 2200 | 50*80 | 43 | 4.2 | LSR351M5B222KC80 | |
| 2200 | 42*105 | 43 | 4.3 | LSR351M5B222KVA5 | |
| 2700 | 50*100 | 35 | 5 | LSR351M5B272KCA0 | |
| 3900 | 65*80 | 24 | 7.2 | LSR351M6C392KD80 | |
| 4700 | 65*100 | 20 | 8.6 | LSR351M6C472KDA0 | |
| 5600 | 76*100 | 17 | 8.2 | LSR351M6C562KEA0 | |
| 6800 | 65*130 | 14 | 11.5 | LSR351M6C682KDD0 | |
| 6800 | 76*115 | 14 | 9.5 | LSR351M6C682KEB5 | |
| 8200 | 76*145 | 12 | 11.4 | LSR351M6C822KEE5 | |
| 10000 | 76*170 | 10 | 13.2 | LSR351M6C103KE70 | |
| 12000 | 89*145 | 8 | 15.5 | LSR351M6C123KFE5 | |
| 15000 | 76*225 | 6 | 18.4 | LSR351M6C153KEN0 | |
| 15000 | 89*170 | 6 | 18.3 | LSR351M6C153KFH0 | |
| 18000 | 89*200 | 5 | 22.2 | LSR351M6C183KFO0 | |
| 22000 | 89*230 | 5 | 22.6 | LSR351M6C223KFM0 | |
| 400v | 560 | 35*55 | 227 | 1.4 | LSR401M5B560KA55 |
| 680 | 42*55 | 187 | 1.7 | LSR401M5B680KV55 | |
| 820 | 35*70 | 155 | 1.8 | LSR401M5B820KA70 | |
| 1000 | 35*80 | 127 | 2.2 | LSR401M5B102KA80 | |
| 1000 | 42*70 | 127 | 2.2 | LSR401M5B102KV80 | |
| 1200 | 35*100 | 106 | 2.5 | LSR401M5B122KAA0 | |
| 1200 | 42*80 | 106 | 2.4 | LSR401M5B122KV80 | |
| 1500 | 42*90 | 85 | 2.8 | LSR401M5B152KV90 | |
| 1500 | 50*70 | 85 | 3 | LSR401M5B152KC70 | |
| 1800 | 50*80 | 71 | 3.3 | LSR401M5B182KC80 | |
| 1800 | 42*105 | 71 | 3.3 | LSR401M5B182KVA5 | |
| 2200 | 50*100 | 58 | 3.9 | LSR401M5B222KCA0 | |
|
3300 |
65*80 |
39 |
5.8 |
LSR401M6C332KD80 |
|
|
3900 |
65*100 |
33 |
6.8 |
LSR401M6C392KDA0 |
|
|
4700 |
65*120 |
30 |
6.8 |
LSR401M6C472KDC0 |
|
|
5600 |
76*100 |
23 |
8.9 |
LSR401M6C562KEA0 |
|
|
6800 |
76*115 |
19 |
8.2 |
LSR401M6C682KEB5 |
|
|
8200 |
76*145 |
16 |
9.8 |
LSR401M6C822KEE5 |
|
|
10000 |
76*170 |
13 |
11.4 |
LSR401M6C103KE70 |
|
|
12000 |
89*145 |
11 |
13.4 |
LSR401M6C123KFE5 |
|
|
15000 |
76*225 |
8 |
16 |
LSR401M6C153KEN0 |
|
|
15000 |
89*170 |
8 |
15.8 |
LSR401M6C153KFH0 |
|
|
18000 |
89*220 |
7 |
19.2 |
LSR401M6C183KFN0 |
|
|
22000 |
89*230 |
7 |
22.1 |
LSR401M6C223KFM0 |
|
| 450v |
470 |
35*55 |
237 |
1.4 |
LSR451M5B470KA55 |
|
560 |
35*70 |
199 |
1.7 |
LSR451M5B560KA70 |
|
|
560 |
42*55 |
199 |
1.7 |
LSR451M5B560KV55 |
|
|
680 |
35*80 |
164 |
1.7 |
LSR451M5B680KA80 |
|
|
820 |
42*70 |
136 |
2 |
LSR451M5B820KV70 |
|
|
820 |
35*100 |
136 |
2.1 |
LSR451M5B820KAA0 |
|
|
1000 |
42*80 |
111 |
2.2 |
LSR451M5B102KV80 |
|
|
1000 |
42*70 |
111 |
2.4 |
LSR451M5B102KV70 |
|
|
1200 |
42*90 |
93 |
2.9 |
LSR451M5B122KV90 |
|
|
1500 |
50*80 |
74 |
3.2 |
LSR451M5B152KC80 |
|
|
1500 |
42*105 |
74 |
3.3 |
LSR451M5B152KVA5 |
|
|
1800 |
50*100 |
62 |
3.8 |
LSR451M5B182KCA0 |
|
|
2200 |
65*80 |
51 |
5 |
LSR451M6C222KD80 |
|
|
2700 |
65*100 |
41 |
6.1 |
LSR451M6C272KDA0 |
|
|
3900 |
65*130 |
29 |
8.1 |
LSR451M6C392KDD0 |
|
|
3900 |
76*100 |
29 |
6.3 |
LSR451M6C392KEA0 |
|
|
4700 |
76*115 |
24 |
7.3 |
LSR451M6C472KEB5 |
|
|
5600 |
76*145 |
20 |
8.7 |
LSR451M6C562KEE5 |
|
|
6800 |
76*170 |
16 |
10.1 |
LSR451M6C682KE70 |
|
|
8200 |
89*145 |
14 |
11.9 |
LSR451M6C822KFE5 |
|
|
10000 |
76*225 |
11 |
13.9 |
LSR451M6C103KEN0 |
|
|
12000 |
89*170 |
9 |
15.1 |
LSR451M6C123KFH0 |
|
|
15000 |
89*210 |
7 |
18.8 |
LSR451M6C153KFP0 |
|
|
18000 |
89*230 |
5 |
19.1 |
LSR451M6C183KFM0 |
|
| 500v |
390 |
35*55 |
286 |
1.3 |
LSR501M5B390KA55 |
|
470 |
42*55 |
237 |
1.5 |
LSR501M5B470KV55 |
|
|
560 |
35*70 |
199 |
1.7 |
LSR501M5B560KA70 |
|
|
680 |
35*80 |
164 |
2 |
LSR501M5B680KA80 |
|
|
680 |
42*60 |
164 |
1.9 |
LSR501M5B680KV60 |
|
|
820 |
35*100 |
136 |
2.2 |
LSR501M5B820KAA0 |
|
|
820 |
42*70 |
136 |
2.1 |
LSR501M5B820KV70 |
|
|
1000 |
50*70 |
111 |
2.7 |
LSR501M5B102KC70 |
|
|
1200 |
42*90 |
93 |
2.7 |
LSR501M5B122KV90 |
|
|
1200 |
50*80 |
93 |
2.8 |
LSR501M5B122KC80 |
|
|
1500 |
50*90 |
60 |
3.5 |
LSR501M5B152KC90 |
|
|
2200 |
65*80 |
51 |
5 |
LSR501M6C222KD80 |
|
|
2700 |
65*100 |
41 |
6.1 |
LSR501M6C272KDA0 |
|
|
3300 |
76*100 |
34 |
7.3 |
LSR501M6C332KEA0 |
|
|
3900 |
65*130 |
29 |
6.4 |
LSR501M6C392KDD0 |
|
|
4700 |
76*115 |
24 |
7.3 |
LSR501M6C472KEB5 |
|
|
5600 |
76*145 |
20 |
8.7 |
LSR501M6C562KEE5 |
|
|
6800 |
76*170 |
16 |
10.1 |
LSR501M6C682KE70 |
|
|
8200 |
89*145 |
14 |
11.9 |
LSR501M6C822KFE5 |
|
|
10000 |
76*220 |
11 |
13.9 |
LSR501M6C103KEN0 |
|
|
12000 |
76*230 |
9 |
15.1 |
LSR501M6C123KEM0 |
|
|
15000 |
89*200 |
7 |
18.8 |
LSR501M6C153KFO0 |
|
|
15000 |
89*230 |
7 |
19.1 |
LSR501M6C153KFM0 |
|
|
18000 |
89*230 |
5 |
20.3 |
LSR501M6C183KFM0 |
◆ RTED RIPPLE CURRENT MUIERS
● Frequency Multipliers
|
Frequency（HZ） |
50 |
120 |
300 |
1K |
3K |
10K |
50K |
|
16～50VDC |
0.95 |
1.00 |
1.03 |
1.05 |
- |
1.09 |
1.12 |
|
63～80VDC |
0.90 |
1.00 |
1.06 |
1.10 |
- |
1.18 |
1.22 |
|
100～250VDC |
0.80 |
1.00 |
1.12 |
1.22 |
- |
1.30 |
1.33 |
|
350～500VDC |
0.80 |
1.00 |
1.20 |
1.50 |
1.60 |
- |
- |
※Note : The endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime
with every 5 to 10℃ rise. When long life performance is required in actual use, the rms ripple current has to be reduced
Shenzhen Qingyou Electronics Co., Ltd. COPYRIGHT
TEL：0755-27299931 / QQ：1498113525 / E-mail:sunny@shsga.org.cn
ADD：Fuhai Science and Technology Industrial Park, Fuyong Town, Shenzhen
KEYWORDS： Aluminum electrolytic capacitor, Electrolytic capacitor manufacturer ?D-U-N-S?Number: 420674259
Download
<bdo id='vfwf0'></bdo><ul id='ILY3E'></ul>
