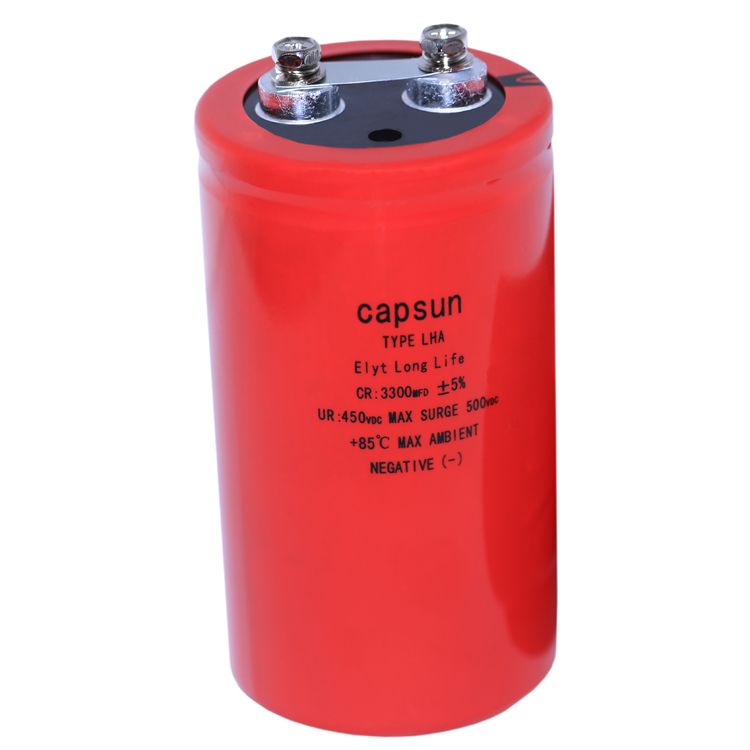

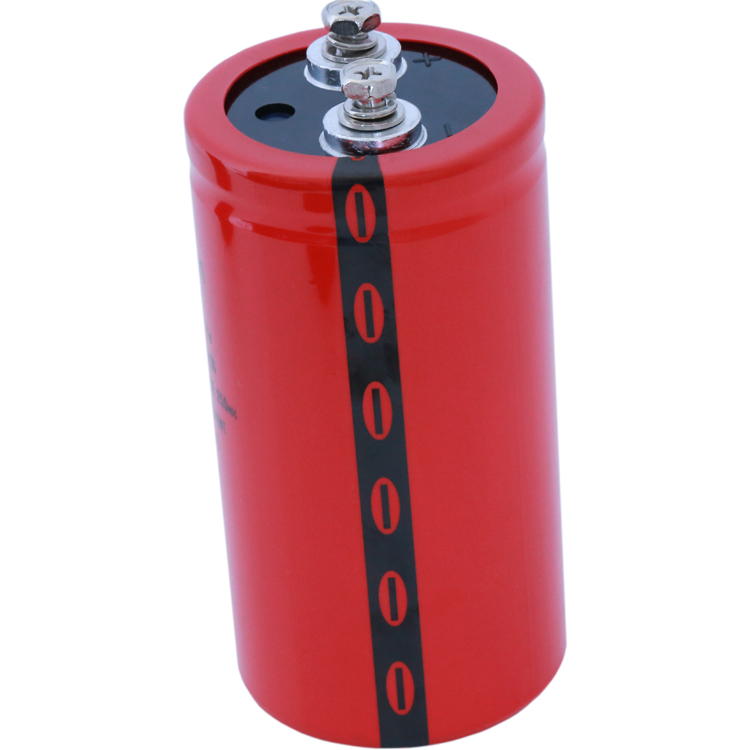

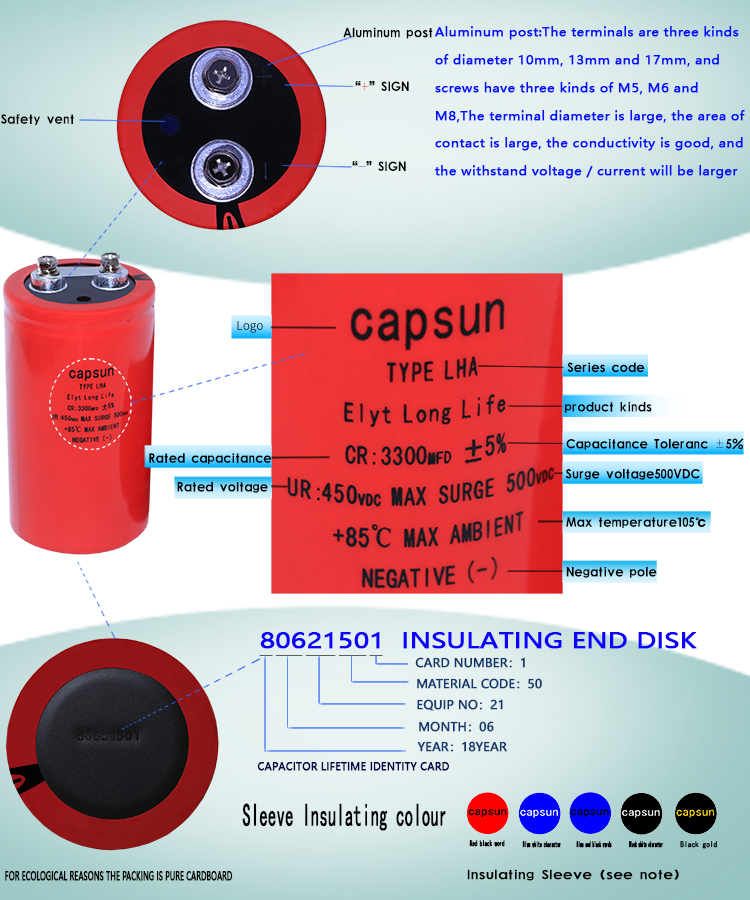

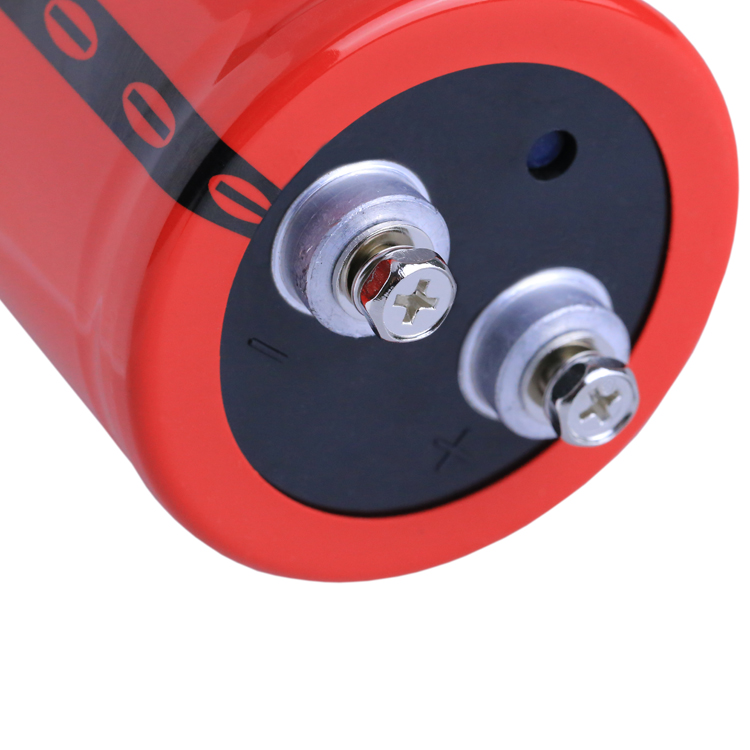

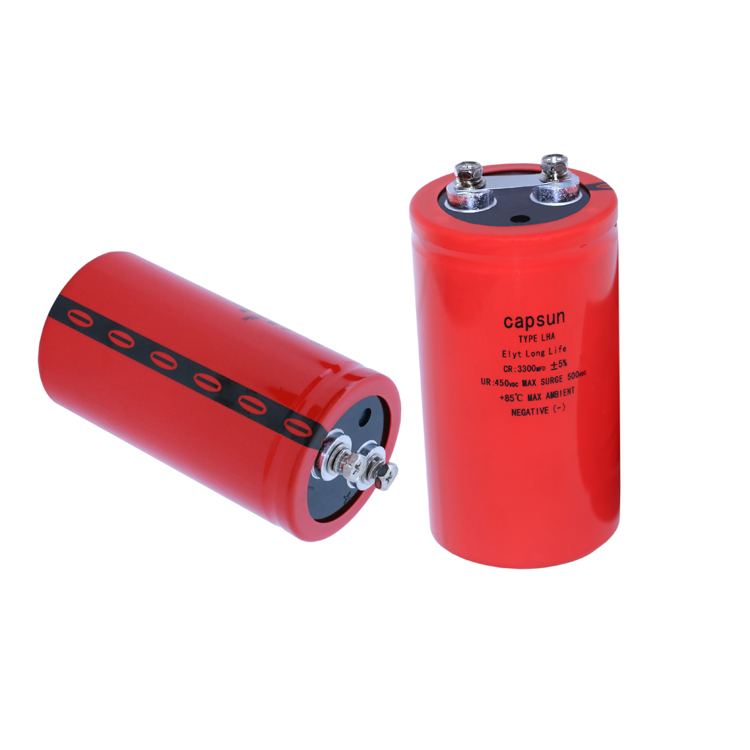

105℃ 2000/5000hours

●Rated voltage range up to 525Vdc
●Endurance with ripple current:5000hours at 105℃(2000hours for 500vdc-525vdc)
●High ripple capability ROHS compliant
●Applicable to High voltage power distribution cabinet, security system,Fujitsu Automatic NUmerical Control

SPECIFIC ATIONS

items	Characteristics
Category temperature Range	-40~+105℃（10-100VDC）、-25~+105℃（160-525VDC）
Rated voltage Range	10~525VDC
Capacitance Tolerance	± 20%（M）                                                                                                              at 20℃/120HZ
Leakage Current	I=0.02CV or 5mA,whichever is smaller I: Where, I : Max. leakage current（µA）、C: Nominal capacitance（µF）、Rated voltage (V)at 20℃after 5 minutes)
Dissipation Factor（tanδ）	See standard ratings(10to250vdc) 0.2max(350vdc~525vdc)                                                              at 20℃/120HZ
Low Temperature characteristics	Capacitance change C（-40℃）/C（+20℃）≥0.6(10to100vdc)  C（-25℃）/C（+20℃）≥0.7(160to250vdc) C（-25℃）/C（+20℃）≥0.65(350to525vdc)                                                           at 20℃/120HZ
Insulation Resistance	When measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case by using an insulation resistance meter of 500Vdc, the insulation resistance shall not be less than 100mΩ
Insulation Withstanding Voltage	When a voltage of 2,000Vac is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case, there shall not be electrical damage.。

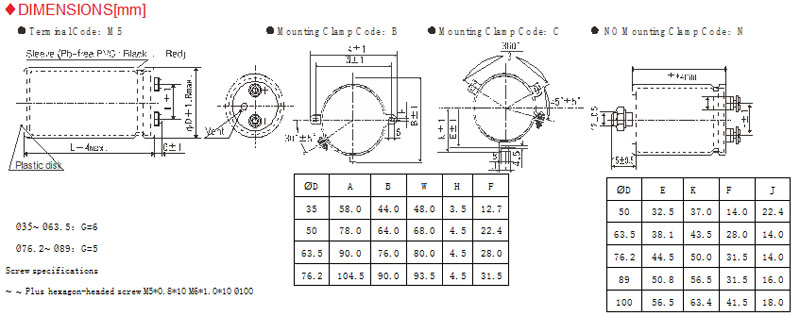

ØD E K F J 50 32.5 37.0 14.0 22.4 63.5 38.1 43.5 28.0 14.0 76.2 44.5 50.0 31.5 14.0 89 50.8 56.5 31.5 16.0 100 56.5 63.4 41.5 18.0 Endurance	The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 5,000 hours at 105℃。(2000hours for 500&525vdc products at 105℃)
	Capacitance change	≤±20% of the initial value
	D.F. (tanδ)	≤200% of the initial specified value
	Leakage current	≤The initial specified value
Shelf Life	The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4
	Capacitance change	≤±20% of the initial value
	D.F. (tanδ)	≤150% of the initial specified value
	Leakage current	≤The initial specified value

SRANDRAD RATINGS

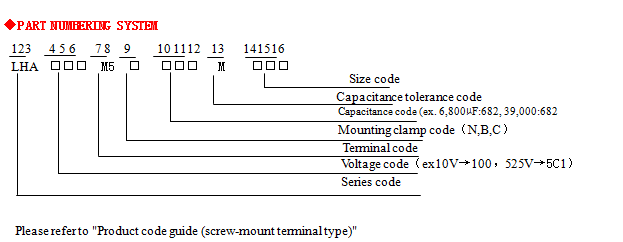

W.V [Vdc] cap [μF] Case size D x L [mm] tanδ120HZ,20℃ Rated ripple current(Ams/105℃,120HZ） Part NO. 10V 27000 35*80 0.45 4.3 LHA100M5B273TA80 33000 35*80 0.45 4.7 LHA100M5B333TA80 39000 35*80 0.45 5.3 LHA100M5B393TA80 47000 35*100 0.45 6.1 LHA100M5B473TAA0 56000 35*100 0.5 6.2 LHA100M5B563TAA0 68000 35*120 0.6 6.8 LHA100M5B683TAC0 82000 50*80 0.6 7.8 LHA100M5C823TC80 100000 50*100 0.7 8.5 LHA100M5C104TCA0 120000 50*100 0.7 9.5 LHA100M5C124TCA0 150000 63.5*100 0.8 11.0 LHA100M5C154TDA0 180000 63.5*100 0.8 12.1 LHA100M5C184TDA0 220000 76.2*100 1.0 13.2 LHA100M5C224TEA0 270000 76.2*120 1.2 14.4 LHA100M5C274TEC0 330000 76.2*140 1.2 17.0 LHA100M5C334TEE0 390000 89*140 1.4 18.6 LHA100M5C394TFE0 16V 15000 35*50 0.45 2.9 LHA160M5B153TA50 18000 35*80 0.45 3.5 LHA160M5B183TA80 22000 35*80 0.45 3.9 LHA160M5B223TA80 27000 35*80 0.45 4.3 LHA160M5B273TA80 33000 35*100 0.5 4.8 LHA160M5B333TAA0 39000 35*100 0.5 5.3 LHA160M5B393TAA0 47000 35*120 0.5 6.2 LHA160M5B473TAC0 56000 50*80 0.6 6.3 LHA160M5C563TC80 68000 50*100 0.6 7.6 LHA160M5C683TCA0 82000 50*120 0.7 8.3 LHA160M5C823TCC0 100000 50*120 0.7 9.2 LHA160M5C104TCC0 120000 63.5*100 0.8 9.9 LHA160M5C124TDA0 150000 76.2*100 0.8 12.3 LHA160M5C154TEA0 180000 76.2*120 0.8 14.5 LHA160M5C184TEC0 220000 76.2*140 1.0 15.2 LHA160M5C224TEE0 270000 89*140 1.2 16.8 LHA160M5C274TFE0 25V 12000 35*80 0.35 3.3 LHA250M5B123TA80 15000 35*80 0.35 3.7 LHA250M5B153TA80 18000 35*80 0.35 4.0 LHA250M5B183TA80 22000 35*80 0.35 4.5 LHA250M5B223TA80 27000 35*100 0.4 5.0 LHA250M5B273TAA0 33000 35*120 0.4 5.9 LHA250M5B333TAC0 39000 50*80 0.4 6.5 LHA250M5C393TC80 47000 50*100 0.4 7.9 LHA250M5C473TCA0 56000 50*120 0.4 8.8 LHA250M5C563TCC0 68000 50*120 0.5 9.1 LHA250M5C683TCC0 82000 63.5*100 0.5 10.6 LHA250M5C823TDA0 100000 63.5*120 0.6 11.4 LHA250M5C104TDC0 120000 76.2*100 0.6 12.8 LHA250M5C124TEA0 150000 76.2*120 0.75 13.7 LHA250M5C154TEC0 180000 76.2*140 0.75 16.1 LHA250M5C184TEE0 220000 89*140 1.0 16.6 LHA250M5C224TFE0 35V 8200 35*80 0.3 3.0 LHA350M5B822TA80 10000 35*80 0.3 3.3 LHA350M5B103TA80 12000 35*80 0.3 3.6 LHA350M5B123TA80 15000 35*80 0.3 4.1 LHA350M5B153TA80 18000 35*100 0.3 4.8 LHA350M5B183TAA0 22000 35*120 0.35 5.2 LHA350M5B223TAC0 27000 50*80 0.4 5.9 LHA350M5C273TC80 33000 50*100 0.4 6.6 LHA350M5C333TCA0 39000 50*120 0.4 7.8 LHA350M5C393TCC0 47000 50*120 0.45 8.0 LHA350M5C473TCC0 56000 63.5*100 0.45 9.2 LHA350M5C563TDA0 68000 63.5*120 0.45 11.0 LHA350M5C683TDC0 82000 76.2*120 0.5 12.7 LHA350M5C823TEC0 100000 76.2*140 0.6 13.5 LHA350M5C104TEE0 120000 89*140 0.6 16.1 LHA350M5C124TFE0 50V 3900 35*50 0.2 2.0 LHA500M5B392TA50 4700 35*50 0.25 2.2 LHA500M5B472TA50 5600 35*80 0.25 2.8 LHA500M5B562TA80 6800 35*80 0.25 3.0 LHA500M5B682TA80 8200 35*80 0.25 3.3 LHA500M5B822TA80 10000 35*80 0.25 3.7 LHA500M5B103TA80 12000 35*100 0.25 4.4 LHA500M5B123TAA0 15000 35*120 0.3 4.7 LHA500M5B153TAC0 18000 50*80 0.35 4.8 LHA500M5C183TC80 22000 50*100 0.35 4.8 LHA500M5C223TCA0 27000 50*120 0.35 7.0 LHA500M5C273TCC0 33000 63.5*100 0.4 7.6 LHA500M5C333TDA0 39000 63.5*120 0.4 8.9 LHA500M5C393TDC0 47000 63.5*120 0.4 9.8 LHA500M5C473TDC0 56000 76.2*120 0.4 11.9 LHA500M5C563TEC0 68000 76.2*140 0.45 13.1 LHA500M5C683TEE0 82000 89*140 0.5 14.8 LHA500M5C823TFE0 63V 2700 35*50 0.15 1.9 LHA630M5B272TA50 3300 35*50 0.15 2.1 LHA630M5B332TA50 3900 35*80 0.2 2.7 LHA630M5B392TA80 4700 35*80 0.2 2.9 LHA630M5B472TA80 5600 35*80 0.2 3.2 LHA630M5B562TA80 6800 35*80 0.2 3.5 LHA630M5B682TA80 8200 35*100 0.2 4.2 LHA630M5B822TAA0 10000 35*120 0.25 4.3 LHA630M5B103TAC0 12000 50*80 0.25 4.8 LHA630M5C123TC80 15000 50*100 0.25 5.9 LHA630M5C153TCA0 18000 50*120 0.25 6.3 LHA630M5C183TCC0 22000 50*120 0.3 6.7 LHA630M5C223TCC0 27000 63.5*120 0.3 8.8 LHA630M5C273TDC0 33000 76.2*100 0.3 10.0 LHA630M5C333TEA0 39000 76.2*120 0.35 10.7 LHA630M5C393TEC0 47000 76.2*140 0.35 12.5 LHA630M5C473TEE0 56000 89*140 0.4 13.8 LHA630M5C563TFE0 80V 2200 35*50 0.15 1.9 LHA800M5B222TA50 2700 35*80 0.15 2.2 LHA800M5B272TA80 3300 30*80 0.15 2.5 LHA800M5B332TA80 3900 35*80 0.15 2.5 LHA800M5B392TA80 4700 35*100 0.15 3.1 LHA800M5B472TAA0 5600 35*100 0.15 3.5 LHA800M5B562TAA0 6800 35*120 0.2 4.1 LHA800M5B682TAC0 8200 50*80 0.2 4.8 LHA800M5C822TC80 10000 50*100 0.2 5.6 LHA800M5C103TCA0 12000 50*100 0.2 6.1 LHA800M5C123TCA0 15000 50*120 0.2 7.4 LHA800M5C153TCC0 18000 63.5*120 0.25 8.0 LHA800M5C183TDC0 22000 76.2*100 0.25 9.1 LHA800M5C223TEA0 27000 76.2*120 0.3 9.7 LHA800M5C273TEC0 33000 76.2*140 0.3 11.5 LHA800M5C333TEE0 39000 89*140 0.35 12.5 LHA800M5C393TFE0 100V 1200 35*50 0.15 1.4 LHA101M5B122TA50 1500 35*80 0.15 1.6 LHA101M5B152TA80 1800 35*80 0.15 1.8 LHA101M5B182TA80 2200 35*80 0.15 2.0 LHA101M5B222TA80 2700 35*50 0.15 2.4 LHA101M5B272TA80 3300 35*100 0.15 2.8 LHA101M5B332TAA0 3900 35*120 0.15 3.1 LHA101M5B392TAC0 4700 50*80 0.15 3.6 LHA101M5C472TC80 5600 50*100 0.15 4.3 LHA101M5C562TCA0 6800 50*120 0.15 5.0 LHA101M5C682TCC0 8200 50*120 0.15 5.5 LHA101M5C822TCC0 10000 63.5*100 0.15 6.4 LHA101M5C103TDA0 12000 63.5*120 0.15 6.6 LHA101M5C123TDC0 15000 76.2*100 0.2 7.5 LHA101M5C153TEA0 18000 76.2*120 0.25 8.0 LHA101M5C183TEC0 22000 76.2*140 0.25 9.4 LHA101M5C223TEE0 27000 89*140 0.3 10.4 LHA101M5C273TFE0 160V 680 35*50 0.15 1.1 LHA161M5B681TA50 820 35*80 0.15 1.2 LHA161M5B821TA80 1000 35*80 0.15 1.3 LHA161M5B102TA80 1200 35*80 0.15 1.5 LHA161M5B122TA80 1500 35*80 0.15 1.7 LHA161M5B152TA80 1800 35*100 0.15 2.0 LHA161M5B182TAA0 2200 35*120 0.15 2.3 LHA161M5B182TAA0 2700 35*120 0.15 2.7 LHA161M5B272TAC0 3300 50*100 0.15 3.3 LHA161M5C332TCA0 3900 50*120 0.15 3.8 LHA161M5C392TCC0 4700 50*120 0.15 4.2 LHA161M5C472TCC0 5600 50*120 0.15 4.7 LHA161M5C562TCC0 6800 63.5*120 0.15 5.7 LHA161M5C682TDC0 8200 76.2*100 0.2 6.4 LHA161M5C822TEA0 10000 76.2*120 0.2 6.6 LHA161M5C103TEC0 12000 76.2*140 0.2 7.8 LHA161M5C123TEE0 15000 89*140 0.2 9.5 LHA161M5C153TFE0 200V 470 35*50 0.15 0.9 LHA201M5B471TA50 560 35*80 0.15 1.0 LHA201M5B561TA80 680 35*80 0.15 1.1 LHA201M5B681TA80 820 35*80 0.15 1.3 LHA201M5B821TA80 1000 35*100 0.15 1.5 LHA201M5B102TAA0 1200 35*120 0.15 1.7 LHA201M5B122TAC0 1500 35*120 0.15 1.9 LHA201M5B152TAC0 1800 50*80 0.15 2.2 LHA201M5C182TC80 2200 50*100 0.15 2.7 LHA201M5C222TCA0 2700 50*120 0.15 3.2 LHA201M5C272TCC0 3300 50*120 0.15 3.5 LHA201M5C332TCC0 3900 63.5*100 0.15 4.0 LHA201M5C392TDA0 4700 63.5*120 0.15 4.7 LHA201M5C472TDC0 5600 76.2*100 0.15 5.3 LHA201M5C562TEA0 6800 76.2*120 0.15 6.3 LHA201M5C682TEC0 8200 76.2*140 0.2 6.4 LHA201M5C822TEE0 10000 89*140 0.2 7.7 LHA201M5C103TFE0 250V 330 35*50 0.15 0.7 LHA251M5B331TA50 390 35*80 0.15 0.8 LHA251M5B391TA80 470 35*80 0.15 0.9 LHA251M5B471TA80 560 35*80 0.15 1.0 LHA251M5B561TA80 680 35*100 0.15 1.2 LHA251M5B681TAA0 820 35*100 0.15 1.4 LHA251M5B821TAA0 1000 35*120 .015 1.6 LHA251M5B102TAC0 1200 50*80 0.15 1.8 LHA251M5C122TC80 1500 50*100 0.15 2.2 LHA251M5C152TCA0 2200 50*120 0.15 2.8 LHA251M5C222TCC0 2700 63.5*100 0.15 3.3 LHA251M5C272TDA0 3300 63.5*120 0.15 4.0 LHA251M5C332TDC0 3900 76.2*100 0.15 4.4 LHA251M5C392TEA0 4700 76.2*120 0.15 5.2 LHA251M5C472TEC0 5600 76.2*140 0.15 6.1 LHA251M5C562TEE0 6800 89*140 0.15 7.4 LHA251M5C682TFE0 350V 820 50*60 0.2 3.3 LHA351M5C821MC60 1500 50*85 0.2 5.2 LHA351M5C152MC85 2200 50*105 0.2 7.0 LHA351M5C222MCA5 2700 50*125 0.2 8.4 LHA351M5C272MCC5 2700 63.5*85 0.2 8.1 LHA351M5C272MD85 3300 50*145 0.2 9.9 LHA351M5C332MCE5 3300 63.5*105 0.2 9.8 LHA351M5C332MDA5 3900 63.5*125 0.2 11.5 LHA351M5C392MDC5 3900 76.2*85 0.2 10.8 LHA351M5C392ME85 5600 63.5*145 0.2 14.7 LHA351M5C562MDE5 6800 76.2*125 0.2 16.8 LHA351M5C682MEC5 8200 76.5*145 0.2 19.6 LHA351M5C822MEE5 8200 89*125 0.2 18.9 LHA351M5C822MFC5 10000 76.2*190 0.2 23.0 LHA351M5C103MEK0 10000 89*145 0.2 22.2 LHA351M5C103MFE5 15000 89*190 0.2 30.6 LHA351M5C153MFK0 22000 89*270 0.2 46.5 LHA351M5C223MFT0 400V 680 50*60 0.2 3.0 LHA401M5C681MC60 1200 50*85 0.2 4.7 LHA401M5C122MC85 1800 50*105 0.2 6.3 LHA401M5C182MCA5 2200 50*125 0.2 7.5 LHA401M5C222MCC5 2200 63.5*85 0.2 7.3 LHA401M5C222MD85 2700 50*145 0.2 8.9 LHA401M5C272MCE5 2700 63.5*105 0.2 8.8 LHA401M5C272MDA5 3300 63.5*125 0.2 10.5 LHA401M5C332MDC5 3300 76.2*85 0.2 9.9 LHA401M5C332ME85 4700 63.5*145 0.2 13.4 LHA401M5C472MDE5 4700 76.2*125 0.2 13.9 LHA401M5C472MEC5 6800 76.2*145 0.2 17.9 LHA401M5C682MEE5 6800 89*125 0.2 17.2 LHA401M5C682MFC5 8200 76.2*190 0.2 20.8 LHA401M5C822MEK0 8200 89*145 0.2 20.1 LHA401M5C822MFE5 12000 89*190 0.2 27.4 LHA401M5C123MFK0 18000 89*270 0.2 39.4 LHA401M5C183MFT0 450V 560 50*60 0.2 2.6 LHA451M5C561MC60 1000 50*85 0.2 4.0 LHA451M5C102MC85 1200 50*105 0.2 4.8 LHA451M5C122MCA5 1800 50*125 0.2 6.4 LHA451M5C182MCC5 1800 63.5*85 0.2 6.4 LHA451M5C182MD85 2200 50*145 0.2 6.2 LHA451M5C222MCE5 2200 63.5*105 0.2 7.5 LHA451M5C222MDA5 2700 63.5*125 0.2 8.9 LHA451M5C272MDC5 2700 76.2*85 0.2 8.4 LHA451M5C272ME85 3300 63.5*145 0.2 10.6 LHA451M5C332MDE5 3300 76.2*105 0.2 10.2 LHA451M5C332MEA5 3900 76.2*125 0.2 11.9 LHA451M5C392MEC5 4700 76.2*145 0.2 14.2 LHA451M5C472MEE5 5600 89*125 0.2 14.2 LHA451M5C562MFC5 6800 76.2*190 0.2 17.3 LHA451M5C682MEK0 6800 89*145 0.2 16.7 LHA451M5C682MFE5 10000 89*190 0.2 22.8 LHA451M5C103MFK0 15000 89*270 0.2 32.8 LHA451M5C153MFT0 500V 820 50*85 0.2 3.6 LHA501M5C821MC85 1000 50*105 0.2 4.4 LHA501M5C102MCA5 1200 50*125 0.2 5.2 LHA501M5C122MCC5 1200 63.5*85 0.2 5.0 LHA501M5C122MD85 1500 50*145 0.2 6.3 LHA501M5C152MCE5 1800 63.5*105 0.2 6.8 LHA501M5C182MDA5 2700 63.5*145 0.2 9.6 LHA501M5C272MDE5 2700 76.2*105 0.2 9.2 LHA501M5C272MEA5 3900 76.2*145 0.2 12.7 LHA501M5C392MEE5 3900 89*125 0.2 11.9 LHA501M5C392MFC5 6800 89*190 0.2 18.8 LHA501M5C682MFK0 10000 89*270 0.2 26.8 LHA501M5C103MFT0 525V 390 50*60 0.2 2.2 LHA5C1M5C391MC60 680 50*85 0.2 3.3 LHA5C1M5C681MC85 1000 50*125 0.2 4.8 LHA5C1M5C102MCC5 1500 63.5*105 0.2 6.2 LHA5C1M5C152MDA5 1800 63.5*145 0.2 7.3 LHA5C1M5C182MDC5 2200 63.5*145 0.2 8.6 LHA5C1M5C222MDE5 2200 76.2*105 0.2 8.3 LHA5C1M5C222MEA5 2700 76.2*125 0.2 9.9 LHA5C1M5C272MEC5 3300 76.2*145 0.2 11.7 LHA5C1M5C332MEE5 4700 76.2*190 0.2 14.4 LHA5C1M5C472MEK0 4700 89*145 0.2 13.9 LHA5C1M5C472MFE5 5600 89*190 0.2 17.1 LHA5C1M5C562MFK0

◆   RTED RIPPLE CURRENT MUIERS
The ripple frequency and standard list of the specified value is not at the same time, please use the value is less than the following
●   Frequency Multiplier

Frequency（HZ）	50	120	300	1K	3K	10K	50K
10～50VDC	0.95	1.00	1.03	1.05	-	1.09	1.12
63～80VDC	0.90	1.00	1.06	1.10	-	1.18	1.22
100～250VDC	0.80	1.00	1.12	1.22	-	1.30	1.33
350～525VDC	0.80	1.00	1.20	1.50	1.60	-	-


Note : The endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with every 5 to 10℃ rise. When long life performance is required in actual use, the rms ripple current has to be reduced. Also, for the LWS series capacitors, using them at operating voltage less than their rated voltage can extend their lifetime. For the details, please contact representative of capsun
